DF50BA40 DIODE

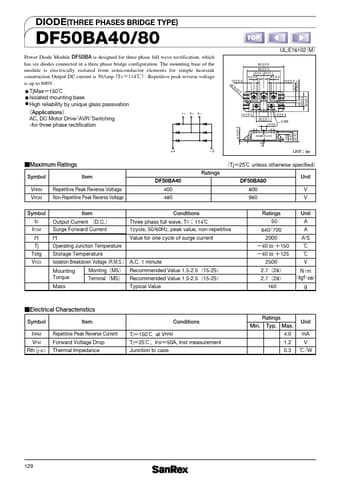

DIODE(THREE PHASES BRIDGE TYPE) DF50BA40/80 Power Diode Module DF50BA is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration. The mounting base of the module is electrically isolated from semiconductor elements for simple heatsink construction Output DC current is 50AmpʢTcʹ114ˆʣ Repetitive peak reverse voltage is up to 800V. ˔ TjMaxʹ150ˆ ˔ Isolated mounting base ˔ High reliability by unique glass passivation ʢApplicationsʣ AC,.

DF50BA40 Datasheet (104.08 KB)
