DF50NA100, DF50NA80 Three Phase Bridge Rectifier

DF50NA100 Description

DF50NA80 THRU DF50NA160 Three Phase Bridge Rectifiers RoHS COMPLIANT +~~~ ‐ ①② ③ ④⑤ .

DF50NA100 Features

* UL recognition, file #E230084
* Glass passivated chip junction
* Thin single in-line package
* High surge current capability

DF50NA100 Applications

* General purpose use in AC/DC bridge full wave rectification for switching power supply, home appliances, office equipment, industrial automation applications. Mechanical Data
* Package: TSB-5 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
* Terminals: Tin plated leads,

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DF50NA100, DF50NA80. Please refer to the document for exact specifications by model.

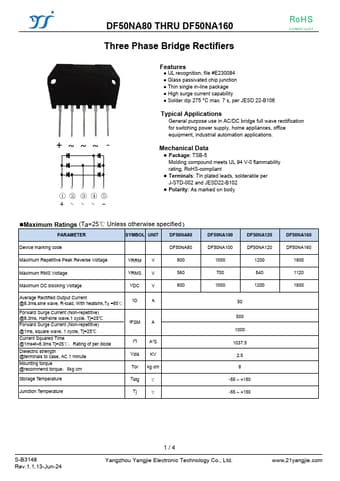

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DF50NA100, DF50NA80
Manufacturer
Yangzhou Yangjie
File Size
220.42 KB
Datasheet
DF50NA80-YangzhouYangjie.pdf
Description
Three Phase Bridge Rectifier
Note
This datasheet PDF includes multiple part numbers: DF50NA100, DF50NA80.
Please refer to the document for exact specifications by model.
