DF5-1822SC, DF5 5mm Pitch Miniature Potting Connector for Secondary Power Supply

📥 Download Datasheet  Datasheet Preview Page 1

Description

5mm Pitch Miniature Potting Connector for Secondary Power Supply DF5 Series s.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DF5-1822SC, DF5. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
DF5-1822SC, DF5
Manufacturer
Hirose
File Size
Direct Link
Datasheet
DF5-A10DP.pdf
Description
5mm Pitch Miniature Potting Connector for Secondary Power Supply
Note
This datasheet PDF includes multiple part numbers: DF5-1822SC, DF5.
Please refer to the document for exact specifications by model.

Features

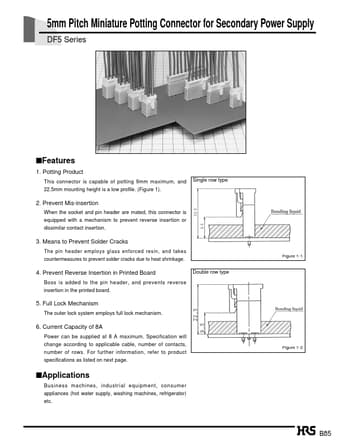

* 1. Potting Product This connector is capable of potting 9mm maximum, and 22.5mm mounting height is a low profile. (Figure 1). Single row type 2. Prevent Mis-insertion When the socket and pin header are mated, this connector is equipped with a mechanism to prevent reverse insertion or dissimilar con

Applications

* Business machines, industrial equipment, consumer appliances (hot water supply, washing machines, refrigerator) etc. B85 sProduct Specifications No. of rows Single row No. of contacts 2 to 10 4 6 8 10 12 14 16 AWG#18 AWG#20 AWG#22 8A 6A 5A 8A 6A 5A 8A 6A 5A 7A 6A 5A 7A 6A 5A 7A 6A 4A 7A 5A 4A 7A 5
