CS8190 - Precision Air-Core Tach/Speedo Driver

CS8190 Description

Precision Air-Core Tach/Speedo Driver with Return to Zero .
The CS8190 is specially designed for use with air-core meter movements.

CS8190 Features

* Direct Sensor Input
* High Output Torque
* Low Pointer Flutter
* High Input Impedance
* Over Voltage Protection

📥 Download Datasheet

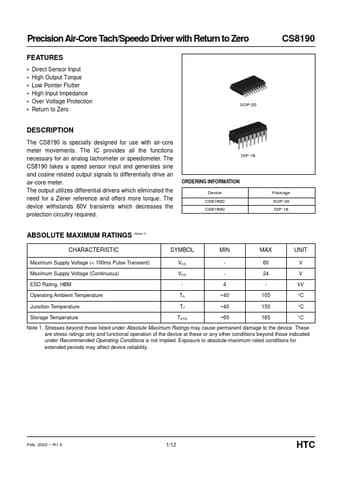

Preview of CS8190 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CS8190
Manufacturer
HTC
File Size
973.78 KB
Datasheet
CS8190-HTC.pdf
Description
Precision Air-Core Tach/Speedo Driver
