TD62783A - 8-Channel Darlington Current Driver

TD62783A Description

8-Channel Darlington Current Driver .
The TD62783A is monolithic high-voltage, high-current Darlington transistor arrays.

TD62783A Features

* 8 Darlington Arrays per Package
* Minus 500 mA (Source) Output Current (Single Output)
* Output voltage 50V
* Output Clamp Diodes
* Input Compatible with Various Types of Logic

TD62783A Applications

* Input pins placed opposite to output pins to simplify layout TD62783A SOP-18 APPLICATION
* Relay Drivers
* Stepper and DC Brushed Motor Drivers
* Lamp Drivers
* Display Drivers
* Line Drivers

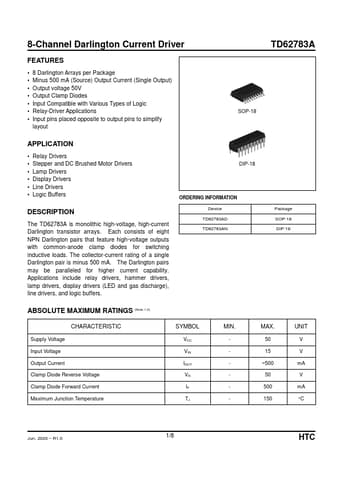

📥 Download Datasheet

Preview of TD62783A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TD62783A
Manufacturer
HTC
File Size
175.08 KB
Datasheet
TD62783A-HTC.pdf
Description
8-Channel Darlington Current Driver
