TD62783AD Datasheet, Driver, HTC

TD62783AD Features

  • Driver
  • 8 Darlington Arrays per Package
  • Minus 500 mA (Source) Output Current (Single Output)
  • Output voltage 50V
  • Output Clamp Diodes
  • Input Compa

PDF File Details

Part number:

TD62783AD

Manufacturer:

HTC

File Size:

175.08kb

Download:

📄 Datasheet

Description:

8-channel darlington current driver. The TD62783A is monolithic high-voltage, high-current Darlington transistor arrays. Each consists of eight NPN Darlington pairs that

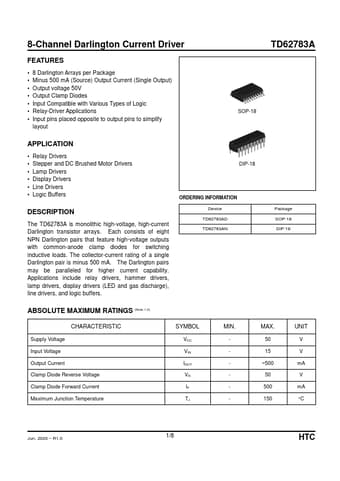

Datasheet Preview: TD62783AD 📥 Download PDF (175.08kb)
Page 2 of TD62783AD Page 3 of TD62783AD

TD62783AD Application

  • Applications
  • Input pins placed opposite to output pins to simplify layout TD62783A SOP-18 APPLICATION
  • Relay Drivers
