TD62783AF - 8CH HIGH-VOLTAGE SOURCE DRIVER

TD62783AF Description

TD62783,784AP/F/AF TOSHIBA BIPOLAR DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC TD62783AP,TD62783F,TD62783AF TD62784AP,TD62784F,TD62784AF 8CH HIGH

TD62783AF Features

* l High output voltage Type
* AP, AF : VCC = 50 V MIN. Type
* F : VCC = 35 V MIN. l Output current (single output) IOUT =
* 500 mA MIN. l Output clamp diodes l Single supply voltage l Input compatible with various types of logic l Package Type
* AP : DIP
* 18 pi

📥 Download Datasheet

Preview of TD62783AF PDF

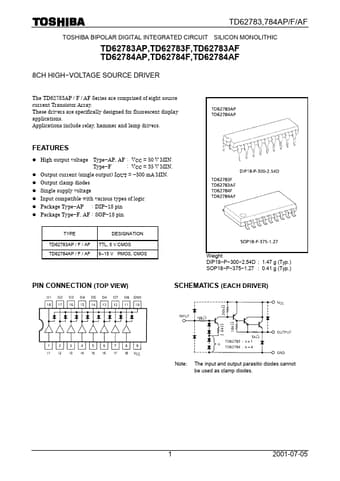

datasheet Preview Page 2 datasheet Preview Page 3
