TD62783AN, TD62783A - 8-Channel Darlington Current Driver

TD62783AN Description

8-Channel Darlington Current Driver .
The TD62783A is monolithic high-voltage, high-current Darlington transistor arrays.

TD62783AN Features

* 8 Darlington Arrays per Package
* Minus 500 mA (Source) Output Current (Single Output)
* Output voltage 50V
* Output Clamp Diodes
* Input Compatible with Various Types of Logic

TD62783AN Applications

* Input pins placed opposite to output pins to simplify layout TD62783A SOP-18 APPLICATION
* Relay Drivers
* Stepper and DC Brushed Motor Drivers
* Lamp Drivers
* Display Drivers
* Line Drivers

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TD62783AN, TD62783A. Please refer to the document for exact specifications by model.

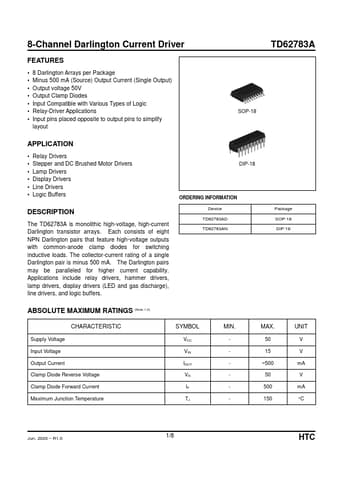

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TD62783AN, TD62783A
Manufacturer
HTC
File Size
175.08 KB
Datasheet
TD62783A-HTC.pdf
Description
8-Channel Darlington Current Driver
Note
This datasheet PDF includes multiple part numbers: TD62783AN, TD62783A.
Please refer to the document for exact specifications by model.
