TD62783AFG, TD62783APG - 8-ch High-Voltage Source Driver

TD62783AFG Description

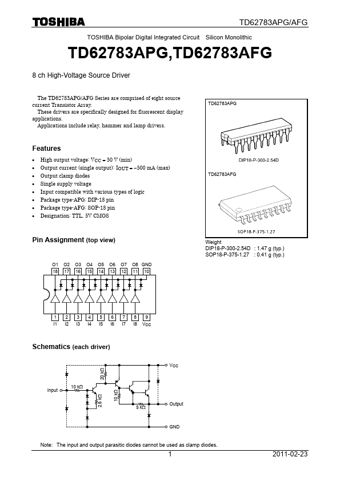

TD62783APG/AFG TOSHIBA Bipolar Digital Integrated Circuit Silicon Monolithic TD62783APG,TD62783AFG 8 ch High-Voltage Source Driver The TD62783APG/AFG.

TD62783AFG Features

* High output voltage: VCC = 50 V (min)
* Output current (single output): IOUT =
* 500 mA (max)
* Output clamp diodes
* Single supply voltage
* Input compatible with various types of logic
* Package type-APG: DIP-18 pin
* Package type-AF

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TD62783AFG, TD62783APG. Please refer to the document for exact specifications by model.
