HY12P03S - P-Channel Enhancement Mode MOSFET

HY12P03S Description

HY12P03S .
DD DD S S S G Top View of SOP-8 Applications. Power Management in DC/DC Converter P-Channel MOSFET Ordering and Marking Information S HY12P03.

HY12P03S Features

* -30V / -12A RDS(ON)=11.5 m Ω (typ. ) @ VGS=-10V RDS(ON)=16.5 m Ω (typ. ) @ VGS=-4.5V
* Avalanche Rated
* Reliable and Rugged

HY12P03S Applications

* Power Management in DC/DC Converter P-Channel MOSFET Ordering and Marking Information S HY12P03 YYÿ XXXJWW G Package Code S : SOP-8 Date Code YYXXX WW Assembly Material G : Lead Free Device Note: HOOYI lead-free products contain molding compounds/die attach materials and 100% matte tin p

📥 Download Datasheet

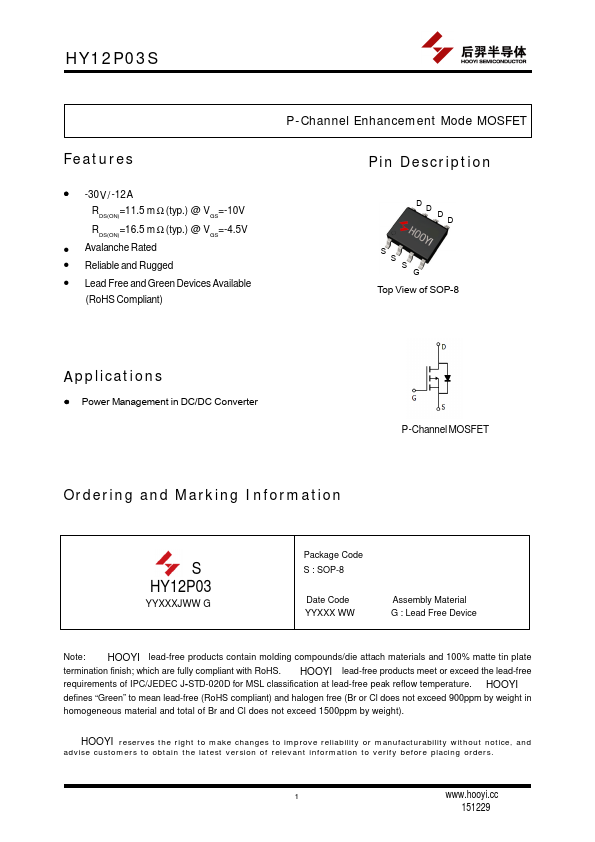

Preview of HY12P03S PDF

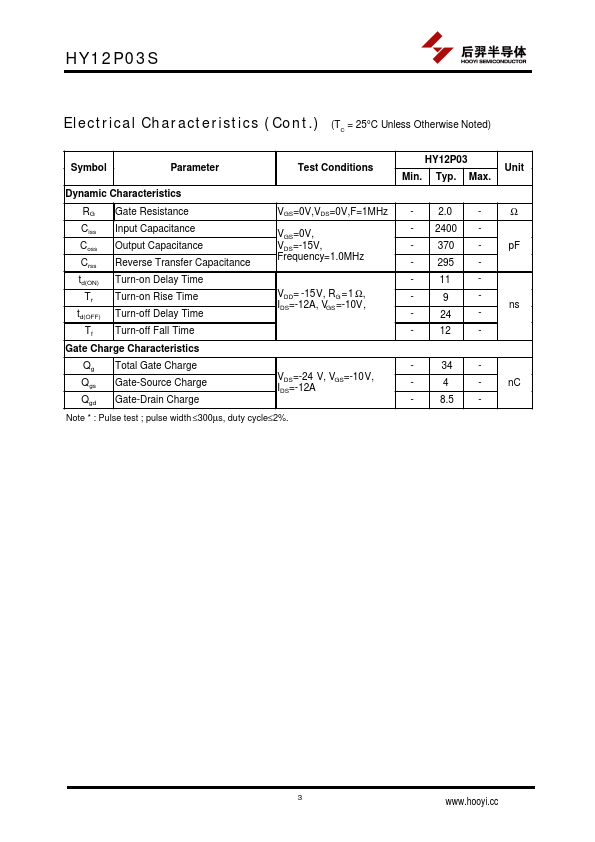

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HY12P03S
Manufacturer
HUAYI
File Size
4.29 MB
Datasheet
HY12P03S-HUAYI.pdf
Description
P-Channel Enhancement Mode MOSFET
