HYG015N03LS2C2 - Single N-Channel Enhancement Mode MOSFET

Datasheet Summary

Description

30V/140A RDS(ON)= 1.5mΩ (typ.) @VGS = 10V RDS(ON)= 2.4mΩ (typ.) @VGS = 4.5V 100% Avalanche Tested Reliable and Rugged Halogen- Free Devices Available Pin Description DDDD DDDD SSSG GSSS Pin1 PDFN5 6-8L Applications Switching Application Power Management

📥 Download Datasheet

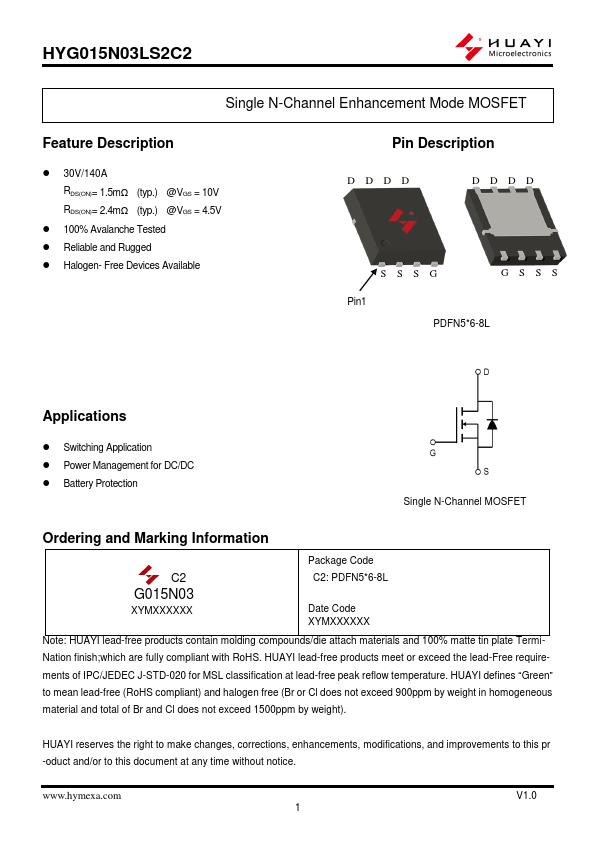

Datasheet preview – HYG015N03LS2C2

Datasheet Details

Part number HYG015N03LS2C2
Manufacturer HUAYI
File Size 629.93 KB
Description Single N-Channel Enhancement Mode MOSFET
Datasheet download datasheet HYG015N03LS2C2 Datasheet

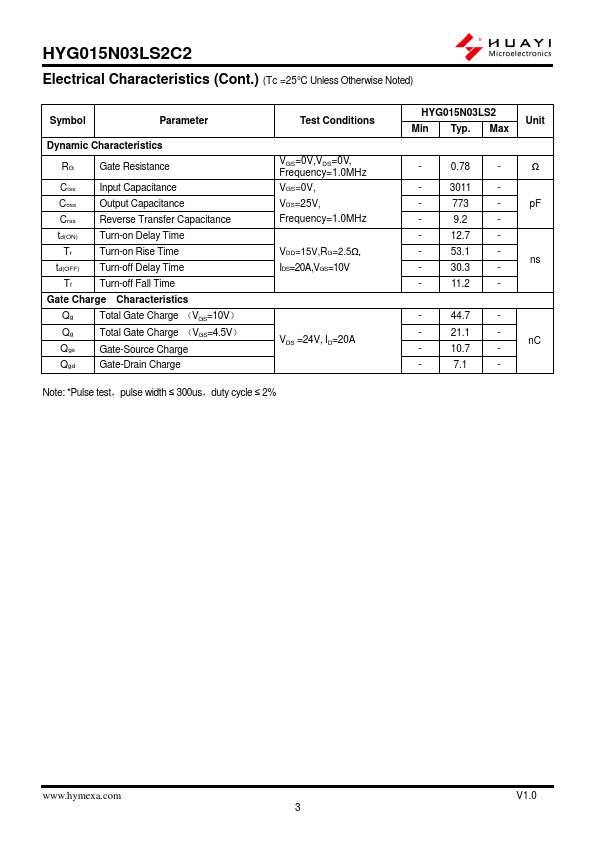

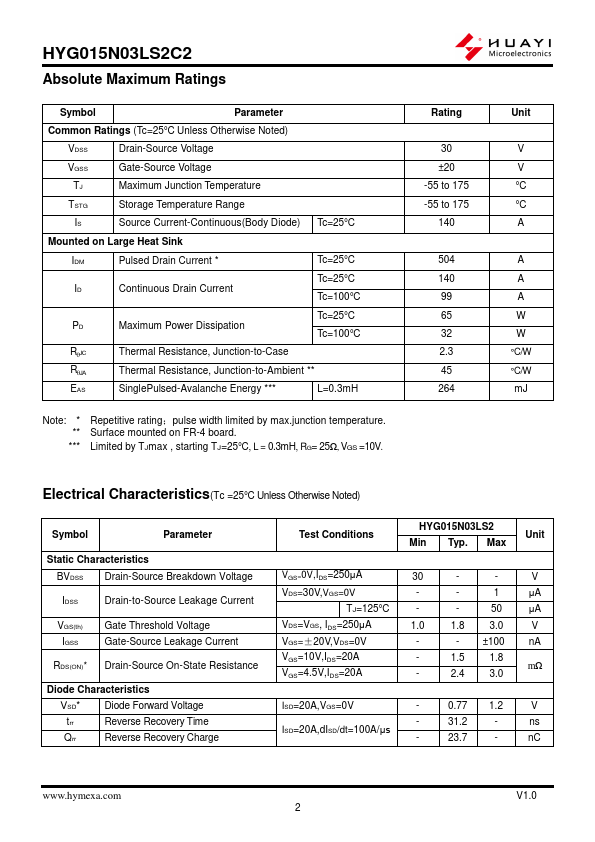

Additional preview pages of the HYG015N03LS2C2 datasheet.

📁 Similar Datasheet

Other Datasheets by HUAYI

Full PDF Text Transcription

Click to expand full text
HYG015N03LS2C2 Single N-Channel Enhancement Mode MOSFET Feature Description  30V/140A RDS(ON)= 1.5mΩ (typ.) @VGS = 10V RDS(ON)= 2.4mΩ (typ.) @VGS = 4.5V  100% Avalanche Tested  Reliable and Rugged  Halogen- Free Devices Available Pin Description DDDD DDDD SSSG GSSS Pin1 PDFN5*6-8L Applications  Switching Application  Power Management for DC/DC  Battery Protection Single N-Channel MOSFET Ordering and Marking Information C2 G015N03 XYMXXXXXX Package Code C2: PDFN5*6-8L Date Code XYMXXXXXX Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plate TermiNation finish;which are fully compliant with RoHS.
