HYG015N04LS1C2 Datasheet - HUAYI

HYG015N04LS1C2 Single N-Channel Enhancement Mode MOSFET

* 40V/150A RDS(ON)= 1.4mΩ (typ.) @VGS = 10V RDS(ON)= 2.0mΩ (typ.) @VGS = 4.5V * 100% Avalanche Tested * Reliable and Rugged * Halogen- Free Devices Available Pin Description DDDD DDDD SSSG GSSS Pin1 PDFN5 *6-8L Applications * Switching Application * Power Management.

HYG015N04LS1C2-HUAYI.pdf

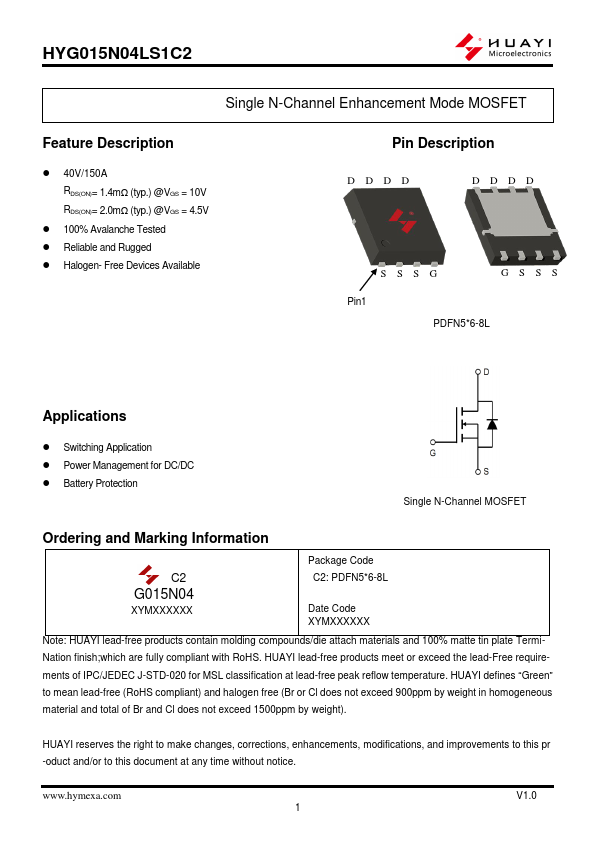

Preview of HYG015N04LS1C2 PDF

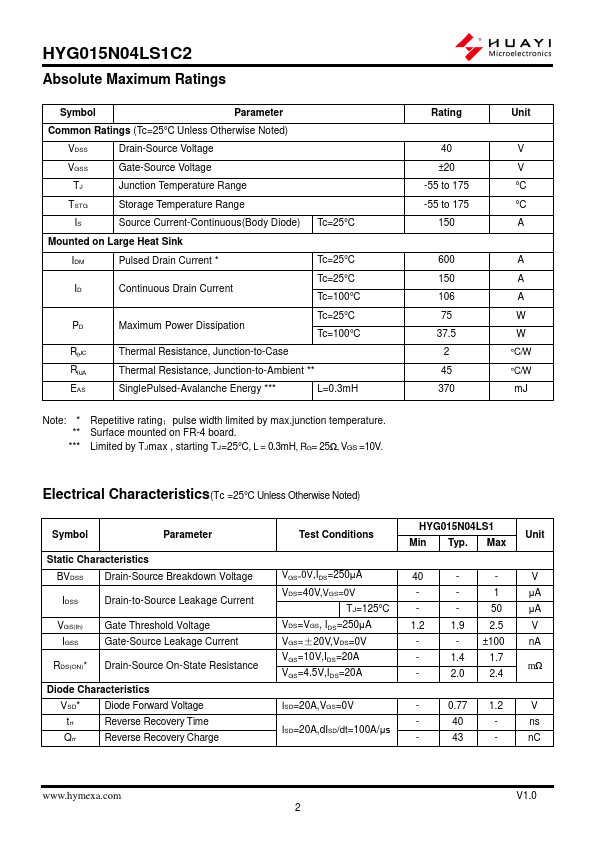

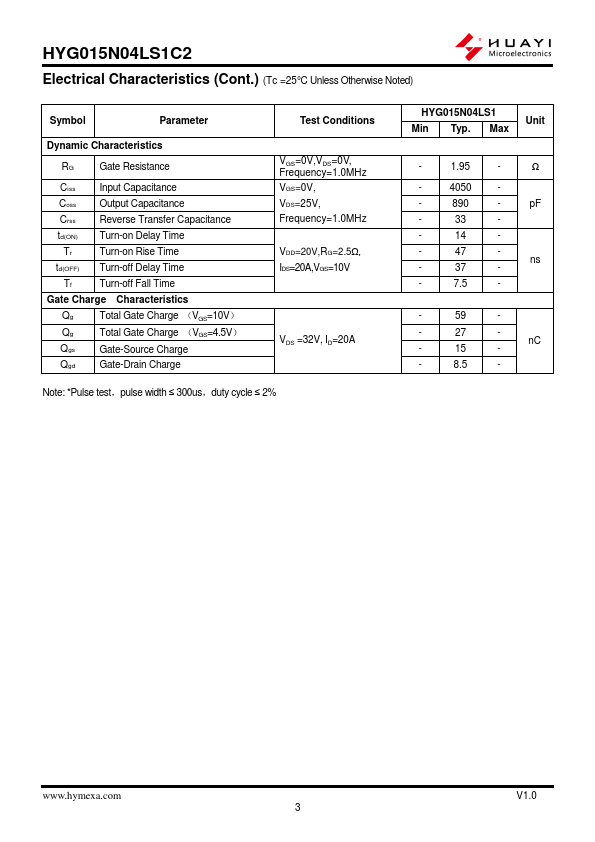

HYG015N04LS1C2 Datasheet Preview Page 2 HYG015N04LS1C2 Datasheet Preview Page 3

Datasheet Details

Part number:

HYG015N04LS1C2

Manufacturer:

HUAYI

File Size:

601.47 KB

Description:

Single n-channel enhancement mode mosfet.
