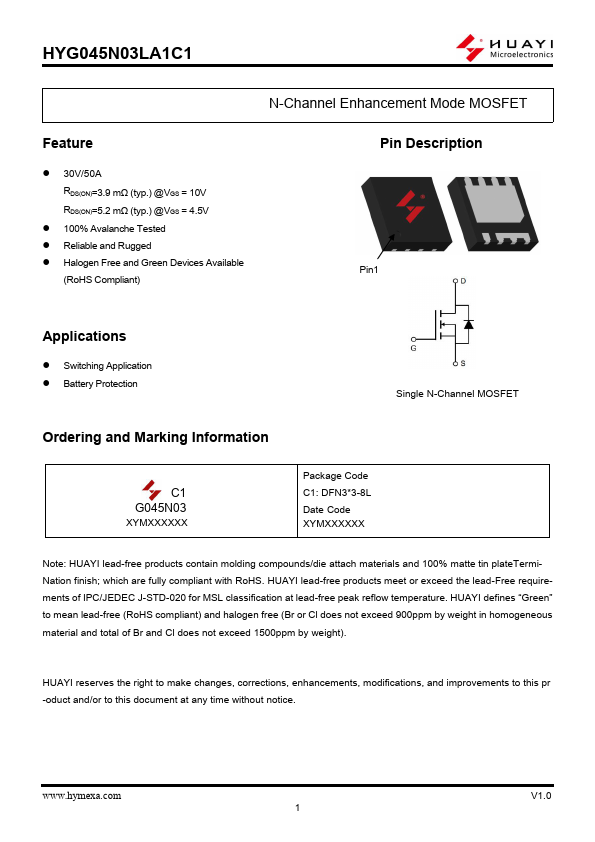

HYG045N03LA1C1 N-Channel Enhancement Mode MOSFET

HUAYI

Description

HYG045N03LA1C1 N-Channel Enhancement Mode MOSFET .
Pin1 Applications. Switching Application. Battery Protection Single N-Channel MOSFET Ordering and Marking Information C1 G045N03 XYMXXXXX.

📥 Download Datasheet

HYG045N03LA1C1 Datasheet Preview — Preview of HYG045N03LA1C1 PDF

Datasheet Specifications

Part number: HYG045N03LA1C1
Manufacturer: HUAYI
File Size: 1.31 MB
Datasheet: HYG045N03LA1C1-HUAYI.pdf
Description: N-Channel Enhancement Mode MOSFET

Applications

* Switching Application
* Battery Protection Single N-Channel MOSFET Ordering and Marking Information C1 G045N03 XYMXXXXXX Package Code C1: DFN3
* 3-8L Date Code XYMXXXXXX Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plateTermiNation
