| Part number | HYG045N10NS1B, HYG045N10NS1P |
|---|---|
| Manufacturer | HUAYI |
| File Size | 1.35 MB |
| Description | N-Channel Enhancement Mode MOSFET |
| Datasheet |
 HYG045N10NS1P-HUAYI.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: HYG045N10NS1B, HYG045N10NS1P. Please refer to the document for exact specifications by model. |

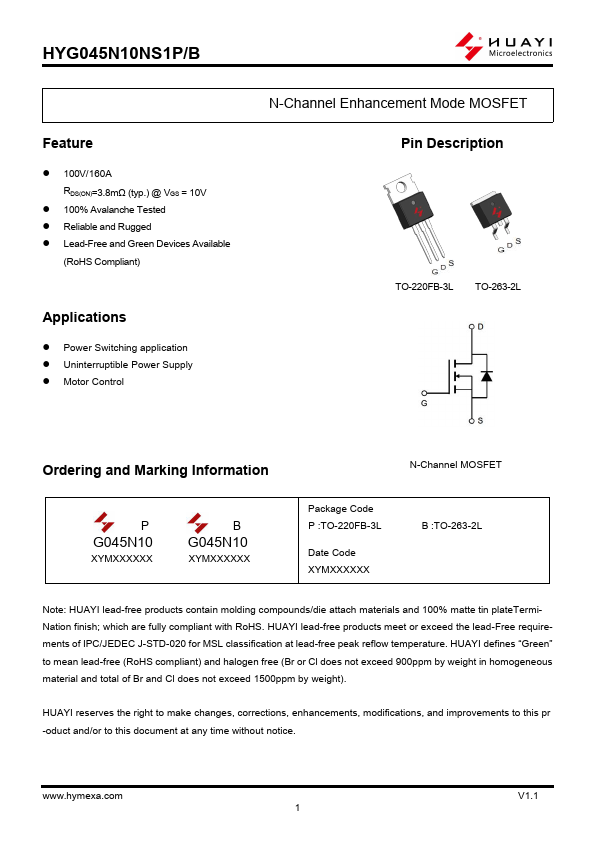

TO-220FB-3L TO-263-2L Ordering and Marking Information P G045N10 XYMXXXXXX B G045N10 XYMXXXXXX N-Channel MOSFET Package Code P :TO-220FB-3L Date Code XYMXXXXXX B :TO-263-2L Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plateTermiNation finish; which are fully compliant with RoHS.HUAYI lead-free products meet or exceed the lead-Free requirements of IPC/JEDEC J-STD-020 for MSL classification at lead-free peak reflow temperature.HUAYI defi
