Datasheet Details
| Part number | HYG170C03LR1S |
|---|---|
| Manufacturer | HUAYI |
| File Size | 1.40 MB |
| Description | N-Channel Enhancement Mode MOSFET |
| Datasheet |
 HYG170C03LR1S-HUAYI.pdf
|
| Part number | HYG170C03LR1S |
|---|---|
| Manufacturer | HUAYI |
| File Size | 1.40 MB |
| Description | N-Channel Enhancement Mode MOSFET |
| Datasheet |
HYG170C03LR1S-HUAYI.pdf
|

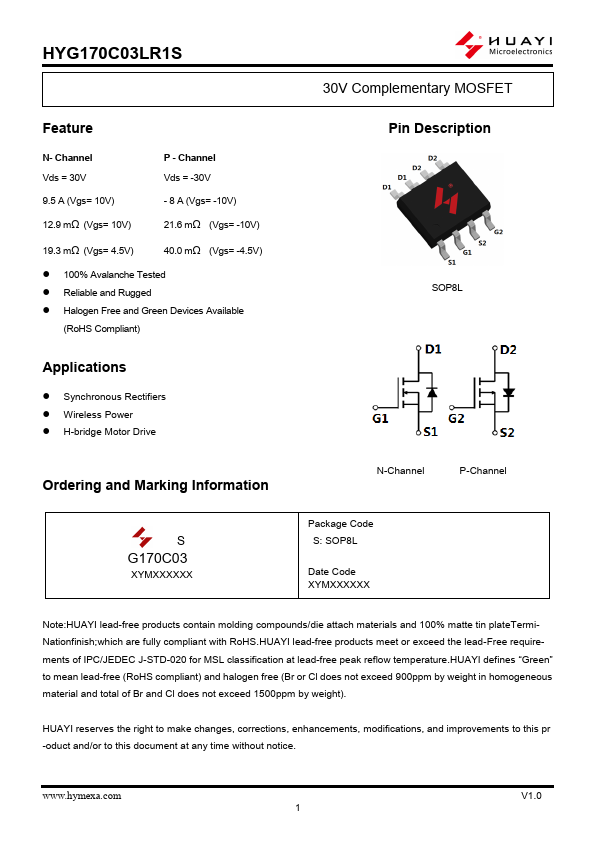

SOP8L Ordering and Marking Information S G170C03 XYMXXXXXX N-Channel P-Channel Package Code S: SOP8L Date Code XYMXXXXXX Note:HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plateTermiNationfinish;which are fully compliant with RoHS.HUAYI lead-free products meet or exceed the lead-Free requirements of IPC/JEDEC J-STD-020 for MSL classification at lead-free peak reflow temperature.HUAYI defines “Green” to mean lead-free (RoHS compliant) and halogen
