HIN212, HIN200, (HIN200 - HIN213) +5V Powered RS-232 Transmitters/Receivers

www.DataSheet4U.com S E M I C O N D U C T O R HIN200 thru HIN213 +5V Powered RS-232 Transmitters/Receivers with 0.1Microfarad External Capacitors De.
The HIN200-HIN213 family of RS-232 transmitters/receivers interface circuits meet all ElA RS-232E and V.

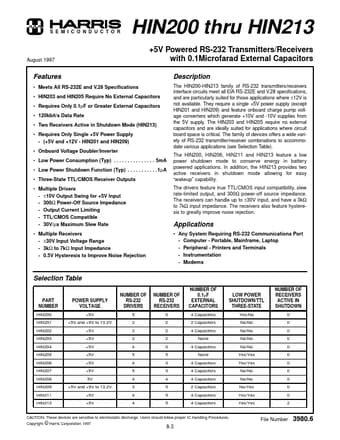

datasheet Preview Page 1 from Datasheet4u.com

HIN200_HarrisCorporation.pdf

HIN212 Datasheet Preview — This datasheet PDF includes multiple part numbers: HIN212, HIN200. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HIN212, HIN200

Manufacturer:

Harris Corporation

File Size:

184.40 KB

Description:

(HIN200 - HIN213) +5V Powered RS-232 Transmitters/Receivers

Note:

This datasheet PDF includes multiple part numbers: HIN212, HIN200.
Please refer to the document for exact specifications by model.

Features

* Meets All RS-232E and V.28 Speciﬁcations
* HIN203 and HIN205 Require No External Capacitors
* Requires Only 0.1µF or Greater External Capacitors
* 120kbit/s Data Rate
* Two Receivers Active in Shutdown Mode (HIN213)
* Requires Only Single +5V Power S
