HIN202

+5V Powered RS-232 Transmitters/Receivers

HIN202 Features

* Meets All RS-232E and V.28 Specifications

* Requires Only 0.1µF or Greater External Capacitors

* High Data Rate. . . . . . . . . . . . . . . . . . . . . . . . . . .120kbit/s

* Two Receivers Active in Shutdown Mode (HIN213)

* Requires Only Single +5V Power Su

HIN202 General Description

PIN VCC V+ VGND C1+ C1C2+ C2TIN TOUT RIN ROUT EN, EN SD, SD NC Power Supply Input 5V ±10%, (5V ±5% HIN207). Internally generated positive supply (+10V nominal). Internally generated negative supply (-10V nominal). Ground Lead. Connect to 0V. External capacitor (+ terminal) is connected to this lead.

HIN202 Datasheet (586.57 KB)

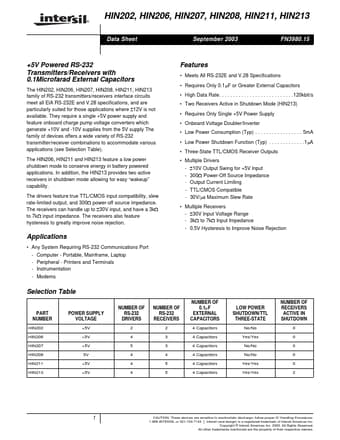

Preview of HIN202 PDF

Datasheet Details

Part number:

HIN202

Manufacturer:

Intersil Corporation

File Size:

586.57 KB

Description:

+5v powered rs-232 transmitters/receivers.
® HIN202, HIN206, HIN207, HIN208, HIN211, HIN213 Data Sheet September 2003 FN3980.15 +5V Powered RS-232 Transmitters/Receivers with 0.1Microfarad Ex.
