HIN205A - High Speed +5V Powered RS-232 Transmitters/Receivers

Product Overview

Intersil Corporation

Part number	HIN205A
Manufacturer	Intersil Corporation
File Size	247.40 KB
Description	High Speed +5V Powered RS-232 Transmitters/Receivers
Datasheet	HIN205A Datasheet

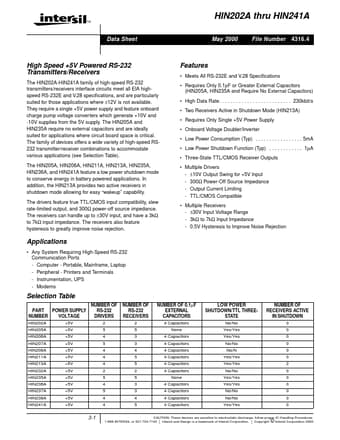

Additional preview pages of the HIN205A datasheet.

Meets All RS-232E and V.28 Speciﬁcations.
Requires Only 0.1µF or Greater External Capacitors (HIN205A, HIN235A and Require No External Capacitors).
High Data Rate.
. 230kbit/s.
Two Receivers Active in Shutdown Mode (HIN213A).
Requires Only Single +5V Power Supply.
Onboard Voltage Doubler/Inverter.
Low Power Consumption (Typ).
. . 5mA.
Low Power Shutdown Fu.
