HIN205E, +/-15kV/ ESD-Protected/ +5V Powered/RS-232 Transmitters/Receivers

HIN202E thru HIN241E TM Data Sheet May 2000 File Number 4315.4 +/-15kV, ESD-Protected, +5V Powered, RS-232 Transmitters/Receivers The HIN202E-HIN.

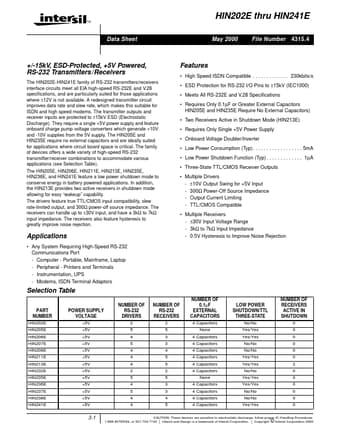

datasheet Preview Page 1 from Datasheet4u.com

HIN205E_IntersilCorporation.pdf

HIN205E Datasheet Preview — Preview of HIN205E PDF

Datasheet Details

Part number:

HIN205E

Manufacturer:

Intersil Corporation

File Size:

314.53 KB

Description:

+/-15kV/ ESD-Protected/ +5V Powered/RS-232 Transmitters/Receivers

Features

* High Speed ISDN Compatible
* . . . 230kbits/s
* ESD Protection for RS-232 I/O Pins to ±15kV (IEC1000)
* Meets All RS-232E and V.28 Speciﬁcations
* Requires Only 0.1µF or Greater External Capacitors HIN205E and HIN235E Require No External Capacitors)

Applications

* where ±12V is not available. A redesigned transmitter circuit improves data rate and slew rate, which makes this suitable for ISDN and high speed modems. The transmitter outputs and receiver inputs are protected to ±15kV ESD (Electrostatic Discharge). They require a single +5V power supply and featu
