HIN205 +5V Powered RS-232 Transmitters/Receivers with 0.1Microfarad External Capacitors

HIN205 Description

HIN201 thru HIN213 TM Data Sheet May 2000 File Number 3980.8 +5V Powered RS-232 Transmitters/Receivers with 0.1Microfarad External Capacitors The.
PIN VCC V+ VGND C1+ C1C2+ C2TIN TOUT RIN ROUT EN, EN SD, SD NC FUNCTION Power Supply Input 5V ±10%, 5V ±5% (HIN207, HIN203, and HIN205).

HIN205 Features

* Meets All RS-232E and V.28 Specifications
* HIN203 and HIN205 Require No External Capacitors
* Requires Only 0.1µF or Greater External Capacitors
* High Data Rate
* . .120kbit/s
* Two Receivers Active in Shutdown Mode

📥 Download Datasheet

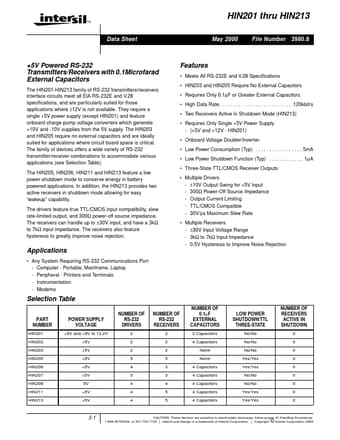

Preview of HIN205 PDF
