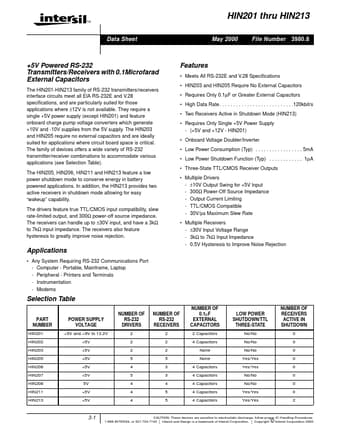

HIN201 Datasheet, Transmitters/receivers, Intersil Corporation

HIN201 Features

• Transmitters/receivers
• Meets All RS-232E and V.28 Specifications
• HIN203 and HIN205 Require No External Capacitors
• Requires Only 0.1µF or Greater External Capacitors
• High

PDF File Details

Part number:

HIN201

Manufacturer:

Intersil Corporation

File Size:

227.78kb

Download:

📄 Datasheet

Description:

+5v powered rs-232 transmitters/receivers. PIN VCC V+ VGND C1+ C1C2+ C2TIN TOUT RIN ROUT EN, EN SD, SD NC FUNCTION Power Supply Input 5V ±10%, 5V ±5% (HIN207, HIN203, and HIN2

HIN201 Application

• Applications where ±12V is not available. They require a single +5V power supply (except HIN201) and feature onboard charge pump voltage converters
