HIN204 - (HIN200 - HIN213) +5V Powered RS-232 Transmitters/Receivers

This page provides the datasheet information for the HIN204, a member of the HIN200 (HIN200 - HIN213) +5V Powered RS-232 Transmitters/Receivers family.

Datasheet Summary

Description

The HIN200-HIN213 family of RS-232 transmitters/receivers interface circuits meet all ElA RS-232E and V.28 specifications, and are particularly suited for those applications where ±12V is not available.

Features

  • Meets All RS-232E and V.28 Specifications.
  • HIN203 and HIN205 Require No External Capacitors.
  • Requires Only 0.1µF or Greater External Capacitors.
  • 120kbit/s Data Rate.
  • Two Receivers Active in Shutdown Mode (HIN213).
  • Requires Only Single +5V Power Supply - (+5V and +12V - HIN201 and HIN209).
  • Onboard Voltage Doubler/Inverter.
  • Low Power Consumption (Typ).
  • 5mA.
  • Low Power Shutdown Function (Typ).

📥 Download Datasheet

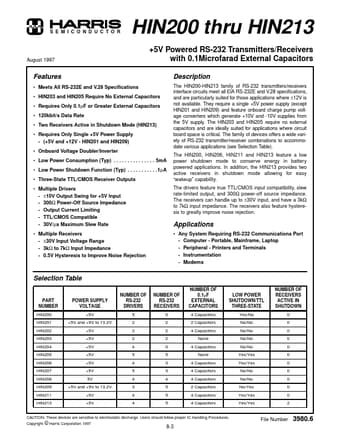

Datasheet preview – HIN204

Datasheet Details

Part number HIN204
Manufacturer Harris Corporation
File Size 184.40 KB
Description (HIN200 - HIN213) +5V Powered RS-232 Transmitters/Receivers
Datasheet download datasheet HIN204 Datasheet
Additional preview pages of the HIN204 datasheet.

📁 Similar Datasheet

  • HIN201 - +5V Powered RS-232 Transmitters/Receivers (Intersil Corporation)
  • HIN202 - +5V Powered RS-232 Transmitters/Receivers (Intersil Corporation)
  • HIN202 - +5V Powered RS-232 Transmitters/Receivers (Renesas)
  • HIN202A - High Speed +5V Powered RS-232 Transmitters/Receivers (Intersil Corporation)
  • HIN202E - +/-15kV/ ESD-Protected/ +5V Powered/RS-232 Transmitters/Receivers (Intersil Corporation)
  • HIN202E - RS-232 Transmitters/Receivers (Renesas)
  • HIN203 - +5V Powered RS-232 Transmitters/Receivers with 0.1Microfarad External Capacitors (Intersil Corporation)
  • HIN205 - +5V Powered RS-232 Transmitters/Receivers with 0.1Microfarad External Capacitors (Intersil Corporation)
  • HIN205A - High Speed +5V Powered RS-232 Transmitters/Receivers (Intersil Corporation)
  • HIN205E - +/-15kV/ ESD-Protected/ +5V Powered/RS-232 Transmitters/Receivers (Intersil Corporation)
Other Datasheets by Harris Corporation
  • HIN200 - (HIN200 - HIN213) +5V Powered RS-232 Transmitters/Receivers
  • HIN201 - (HIN200 - HIN213) +5V Powered RS-232 Transmitters/Receivers
  • HIN202 - (HIN200 - HIN213) +5V Powered RS-232 Transmitters/Receivers
  • HIN203 - (HIN200 - HIN213) +5V Powered RS-232 Transmitters/Receivers
  • HIN205 - (HIN200 - HIN213) +5V Powered RS-232 Transmitters/Receivers
  • HIN206 - (HIN200 - HIN213) +5V Powered RS-232 Transmitters/Receivers
  • HIN207 - (HIN200 - HIN213) +5V Powered RS-232 Transmitters/Receivers
  • HIN208 - (HIN200 - HIN213) +5V Powered RS-232 Transmitters/Receivers

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com S E M I C O N D U C T O R HIN200 thru HIN213 +5V Powered RS-232 Transmitters/Receivers with 0.1Microfarad External Capacitors Description The HIN200-HIN213 family of RS-232 transmitters/receivers interface circuits meet all ElA RS-232E and V.28 specifications, and are particularly suited for those applications where ±12V is not available. They require a single +5V power supply (except HIN201 and HIN209) and feature onboard charge pump voltage converters which generate +10V and -10V supplies from the 5V supply. The HIN203 and HIN205 require no external capacitors and are ideally suited for applications where circuit board space is critical.
