IRF822, IRF820, N-Channel Power MOSFETs

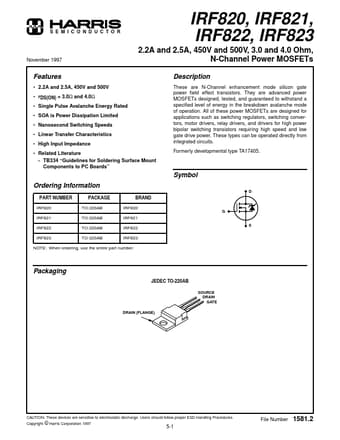

S E M I C O N D U C T O R IRF820, IRF821, IRF822, IRF823 2.2A and 2.5A, 450V and 500V, 3.0 and 4.0 Ohm, N-Channel Power MOSFETs .
These are N-Channel enhancement mode silicon gate power ﬁeld effect transistors.

datasheet Preview Page 1 from Datasheet4u.com

IRF820-Harris.pdf

IRF822 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRF822, IRF820. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRF822, IRF820

Manufacturer:

Harris

File Size:

44.37 KB

Description:

N-Channel Power MOSFETs

Note:

This datasheet PDF includes multiple part numbers: IRF822, IRF820.
Please refer to the document for exact specifications by model.

Features

* 2.2A and 2.5A, 450V and 500V
* rDS(ON) = 3.0Ω and 4.0Ω
* Single Pulse Avalanche Energy Rated
* SOA is Power Dissipation Limited
* Nanosecond Switching Speeds
* Linear Transfer Characteristics
* High Input Impedance
* Related Literatur

Applications

* such as switching regulators, switching convertors, motor drivers, relay drivers, and drivers for high power bipolar switching transistors requiring high speed and low gate drive power. These types can be operated directly from integrated circuits. Formerly developmental type TA17405. November 1997
