HDMP-0421

Port Bypass Circuits

HDMP-0421 Features

* Supports ANSI X3T11 1.0625 Gbps FC-AL Loop Configuration

* Supports 802.3z 1.25 Gbps Gigabit Ethernet (GE) Rates

* Single PBC, CDR, Dual Signal Detect (SD) in a Single Package

* Bidirectional, Symmetric Bypass Capability

* CDR in Bypass Path and Loop Path

HDMP-0421 General Description

The HDMP-0421 is a Single Port Bypass Circuit (PBC) with Clock and Data Recovery (CDR), and dual Signal Detect (SD) capability. This configuration will control jitter accumulation while repeating incoming signals. Port Bypass Circuits are used to provide loops that are continuously on in hard disk a.

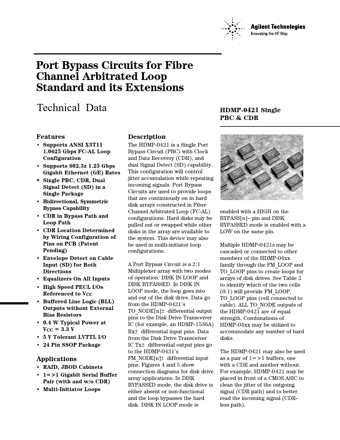

HDMP-0421 Datasheet (183.86 KB)

Preview of HDMP-0421 PDF

Datasheet Details

Part number:

HDMP-0421

Manufacturer:

Hewlett-Packard

File Size:

183.86 KB

Description:

Port bypass circuits.
