HDMP-0452

Quad Port Bypass Circuit

HDMP-0452 Features

* Supports 1.0625 GBd fibre channel operation

* Supports 1.25 GBd Gigabit Ethernet (GE) operation

* Quad PBC/CDR in one package

* CDR location determined by choice of cable input/output

* Valid amplitude detection on FM_NODE[0] input

* Equalizers on al

HDMP-0452 General Description

The HDMP-0452 is a Quad Port Bypass Circuit (PBC) with a Clock and Data Recovery (CDR) circuit included. This device minimizes part count, cost and jitter accumulation while repeating incoming signals. Port Bypass Circuits are used in hard disk arrays constructed in Fibre Channel Arbitrated Loop (FC.

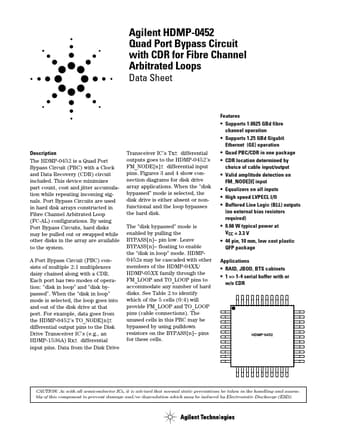

HDMP-0452 Datasheet (274.65 KB)

Preview of HDMP-0452 PDF

Datasheet Details

Part number:

HDMP-0452

Manufacturer:

Hewlett-Packard

File Size:

274.65 KB

Description:

Quad port bypass circuit.
