HDMP-0422

Single Port Bypass Circuit

HDMP-0422 Features

* Supports 1.0625 GBd Fibre Channel operation

* Supports 1.25 GBd Gigabit Ethernet (GE) operation

* Single PBC/CDR in one package

* CDR location determined by choice of cable input/output

* Amplitude valid and data valid detection (Fibre channel rate only) on

HDMP-0422 General Description

The HDMP-0422 is a Single Port Bypass Circuit (PBC) with Clock and Data Recovery (CDR) capability included. This integrated circuit provides a low-cost, lowpower physical-layer solution for Fibre Channel Arbitrated Loop (FC-AL) disk array configurations. By using a PBC such as the HDMP0422, hard dis.

HDMP-0422 Datasheet (257.00 KB)

Preview of HDMP-0422 PDF

Datasheet Details

Part number:

HDMP-0422

Manufacturer:

Hewlett-Packard

File Size:

257.00 KB

Description:

Single port bypass circuit.

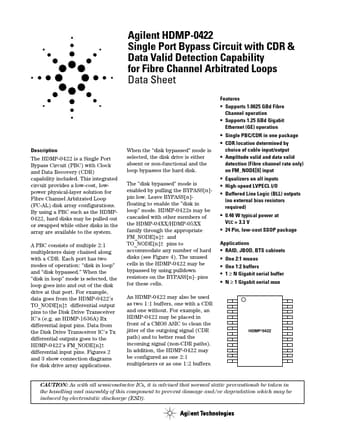

www.DataSheet4U.com Agilent HDMP-0422 Single Port Bypass Circuit with CDR & Data Valid Detection Capability for Fibre Channel Arbitrated Loops Data S.
