HDMP-0450

Quad Port Bypass Circuit

HDMP-0450 Features

* Supports 1.0625 GBd Fibre Channel operation

* Supports 1.25 GBd Gigabit Ethernet (GE) operation

* Quad PBC in one package

* Signal detect on FM_NODE[0] input

* Equalizers on all inputs

* High speed LVPECL I/O

* Buffered Line Logic (BLL) outpu

HDMP-0450 General Description

The HDMP-0450 is a Quad Port Bypass Circuit (PBC) which provides a low-cost, low-power physical-layer solution for Fibre Channel Arbitrated Loop (FC-AL) disk array configurations. By using a PBC such as the HDMP-0450, hard disks may be pulled out or swapped while other disks in the array are availab.

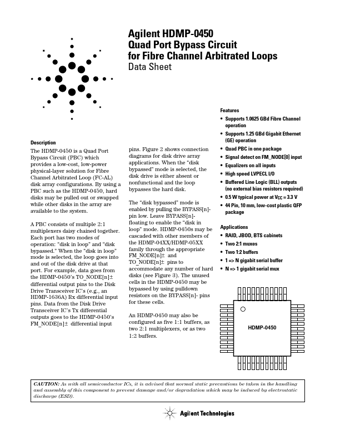

HDMP-0450 Datasheet (271.05 KB)

Preview of HDMP-0450 PDF

Datasheet Details

Part number:

HDMP-0450

Manufacturer:

Hewlett-Packard

File Size:

271.05 KB

Description:

Quad port bypass circuit.
