HDMP-0440

Quad Port Bypass Circuit

HDMP-0440 Features

* Supports 1.0625 GBd Fibre Channel operation

* Supports 1.25 GBd Gigabit Ethernet (GE) operation

* Quad PBC in one package

* Equalizers on all inputs

* High-speed LVPECL I/O

* Buffered Line Logic (BLL) outputs (no external bias resistors required)

HDMP-0440 General Description

The HDMP-0440 is a Quad Port Bypass Circuit (PBC), which provides a low-cost, low-power physical-layer solution for Fibre Channel Arbitrated Loop (FC-AL) disk array configurations. By using a PBC such as the HDMP-0440, hard disks may be pulled out or swapped while other disks in the array are availa.

HDMP-0440 Datasheet (273.83 KB)

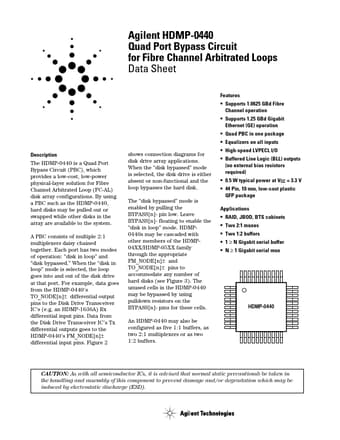

Preview of HDMP-0440 PDF

Datasheet Details

Part number:

HDMP-0440

Manufacturer:

Hewlett-Packard

File Size:

273.83 KB

Description:

Quad port bypass circuit.
