HSDL-3612

IrDA Data Compliant 115.2kb/s 3V to 5V Infrared Transceiver

HSDL-3612 Features

* Fully compliant to IrDA 1.0 physical layer specifications

* 9.6 kb/s to 115.2 kb/s operation

* Typical link distance > 1.5 m

* IEC825-Class 1 eye safe

* Low power operation range

* 2.7 V to 5.25 V

* Small module size

* 4.0 x 12.2 x 5.

HSDL-3612 General Description

The HSDL-3612 is a low-profile infrared transceiver module that provides interface between logic and IR signals for through-air, serial, half-duplex IR data link. The module is compliant to IrDA Data Physical Layer Specifications 1.4 and IEC825-Class 1 Eye Safe. Functional Block Diagram VCC R1 LED.

HSDL-3612 Datasheet (356.86 KB)

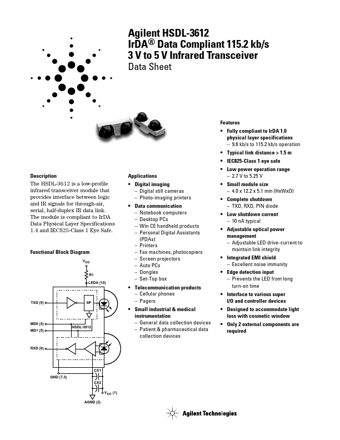

Preview of HSDL-3612 PDF

Datasheet Details

Part number:

HSDL-3612

Manufacturer:

Hewlett-Packard

File Size:

356.86 KB

Description:

Irda data compliant 115.2kb/s 3v to 5v infrared transceiver.
