SGX105R5T - 100V 120A N-CHANNEL POWER MOSFET

Datasheet Summary

Description

The SGX105R5T uses advanced SGT technology and design to provide excellent RDS(on) with low gate charge.

It can be used in a wide variety applications.

Features

VDS=100V, ID=120A.
RDS(on) TYP: 5.1mΩ @VGS=10V.

HiSemicon

📥 Download Datasheet

Datasheet Details

Part number	SGX105R5T
Manufacturer	HiSemicon
File Size	1.09 MB
Description	100V 120A N-CHANNEL POWER MOSFET
Datasheet	SGX105R5T Datasheet

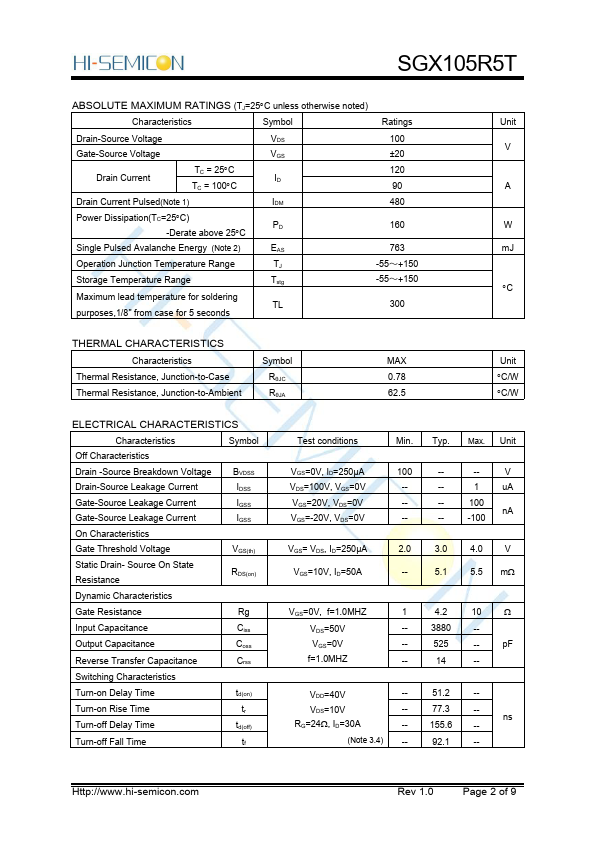

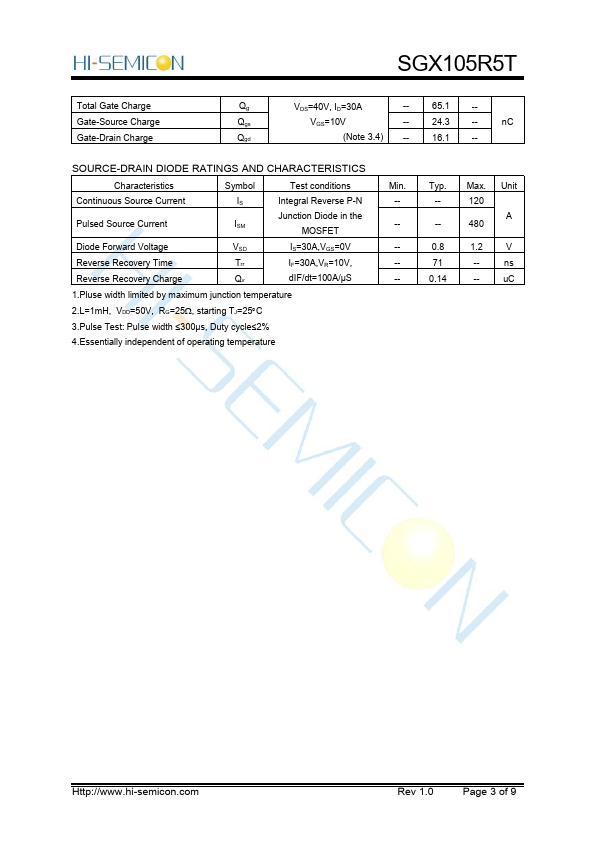

Additional preview pages of the SGX105R5T datasheet.

📁 Similar Datasheet

SGX-4CO - Industrial Carbon Monoxide Sensor (SGX)
SGX-4CO-LC - Industrial Carbon Monoxide Sensor (SGX)
SGX-4NH3-300 - Industrial Ammonia Sensor (SGX)
SGX-4OX - Industrial Oxygen Sensor (SGX)
SGX-7CL2 - Industrial CL2 Sensor (SGX)
SGX-7CO - Industrial Carbon Monoxide Sensor (SGX)
SGX-7ETO - Industrial Ethylene Oxide Sensor (SGX)
SGX-7H2S - Industrial Hydrogen Sulfide Sensor (SGX)
SGX-7NH3-100 - Industrial Ammonia Sensor (SGX)
SGX-7NH3-1000 - Industrial Ammonia Sensor (SGX)

Other Datasheets by HiSemicon

SGX15N10 - 100V 15A N-CHANNEL POWER MOSFET

Full PDF Text Transcription

Click to expand full text

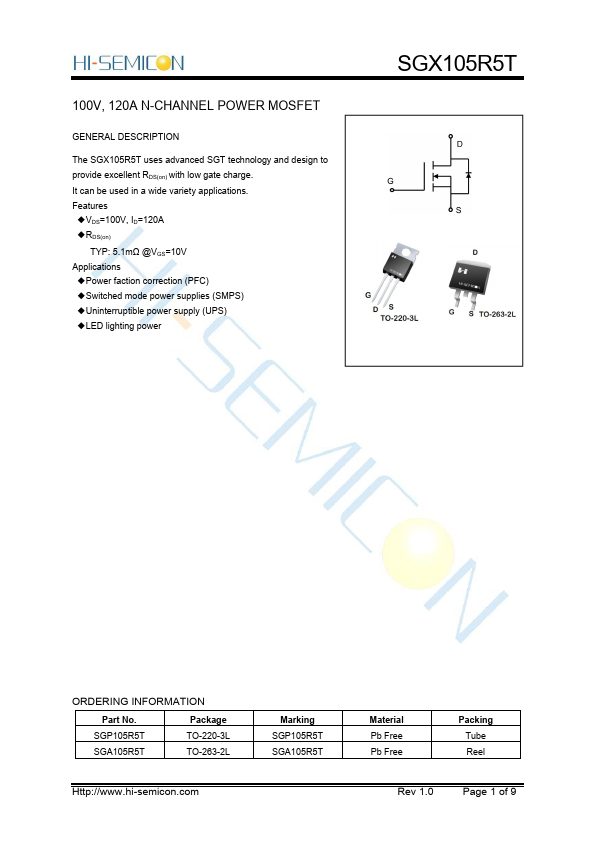

100V, 120A N-CHANNEL POWER MOSFET GENERAL DESCRIPTION The SGX105R5T uses advanced SGT technology and design to provide excellent RDS(on) with low gate charge. It can be used in a wide variety applications. Features ◆VDS=100V, ID=120A ◆RDS(on) TYP: 5.1mΩ @VGS=10V Applications ◆Power faction correction (PFC) ◆Switched mode power supplies (SMPS) ◆Uninterruptible power supply (UPS) ◆LED lighting power SGX105R5T ORDERING INFORMATION Part No. SGP105R5T SGA105R5T Package TO-220-3L TO-263-2L Http://www.hi-semicon.com Marking SGP105R5T SGA105R5T Material Pb Free Pb Free Packing Tube Reel Rev 1.
