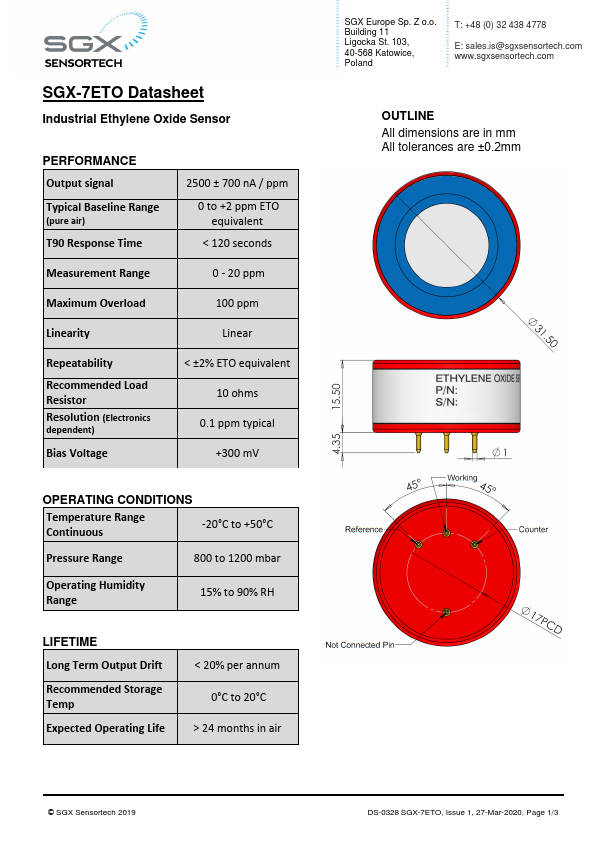

SGX-7ETO Datasheet
Industrial Ethylene Oxide Sensor
PERFORMANCE Output signal Typical Baseline Range
(pure air)
T90 Response Time
Measurement Range
Maximum Overload
Linearity
Repeatability Recommended Load Resistor Resolution (Electronics
dependent)
Bias Voltage
2500 ± 700 nA / ppm 0 to +2 ppm ETO equivalent < 120 seconds 0 - 20 ppm 100 ppm Linear
< ±2% ETO equivalent 10 ohms
0.1 ppm typical +300 mV
OPERATING CONDITIONS
Temperature Range Continuous
-20°C to +50°C
Pressure Range
800 to 1200 mbar
Operating Humidity Range
15% to 90% RH
LIFETIME Long Term Output Drift
Recommended Storage Temp
Expected Operating Life
< 20% per annum 0°C to 20°C
> 24 months in air
SGX Europe Sp. Z o.o. Building 11 Ligocka St. 103, 40-568 Katowice, Poland
T: +48 (0) 32 438 4778
E: sales.
SGX-7ETO Datasheet
