SGX15N10 - 100V 15A N-CHANNEL POWER MOSFET

Datasheet Summary

Description

The SGX15N10 uses advanced SGT technology and design to provide excellent RDS(on) with low gate charge.

It can be used in a wide variety applications.

Features

VDS=100V,ID=15A.
RDS(on) TYP:55mΩ@VGS=10V ID=7.5A.

HiSemicon

📥 Download Datasheet

Datasheet Details

Part number	SGX15N10
Manufacturer	HiSemicon
File Size	771.13 KB
Description	100V 15A N-CHANNEL POWER MOSFET
Datasheet	SGX15N10 Datasheet

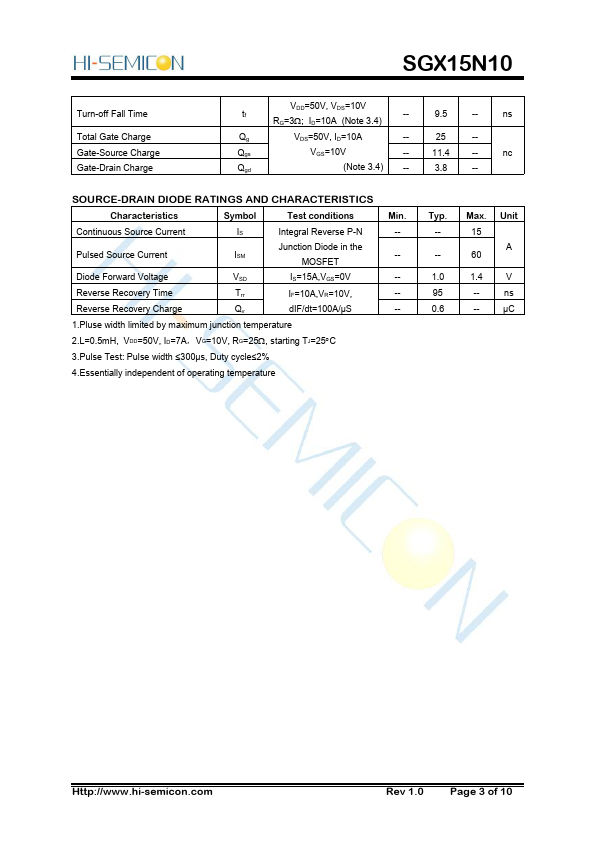

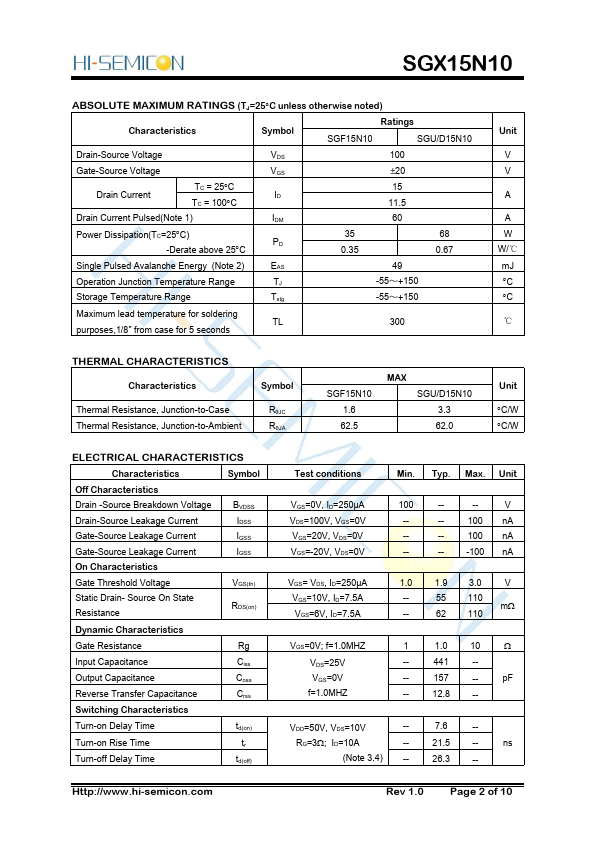

Additional preview pages of the SGX15N10 datasheet.

📁 Similar Datasheet

SGX-4CO - Industrial Carbon Monoxide Sensor (SGX)
SGX-4CO-LC - Industrial Carbon Monoxide Sensor (SGX)
SGX-4NH3-300 - Industrial Ammonia Sensor (SGX)
SGX-4OX - Industrial Oxygen Sensor (SGX)
SGX-7CL2 - Industrial CL2 Sensor (SGX)
SGX-7CO - Industrial Carbon Monoxide Sensor (SGX)
SGX-7ETO - Industrial Ethylene Oxide Sensor (SGX)
SGX-7H2S - Industrial Hydrogen Sulfide Sensor (SGX)
SGX-7NH3-100 - Industrial Ammonia Sensor (SGX)
SGX-7NH3-1000 - Industrial Ammonia Sensor (SGX)

Other Datasheets by HiSemicon

SGX105R5T - 100V 120A N-CHANNEL POWER MOSFET

Full PDF Text Transcription

Click to expand full text

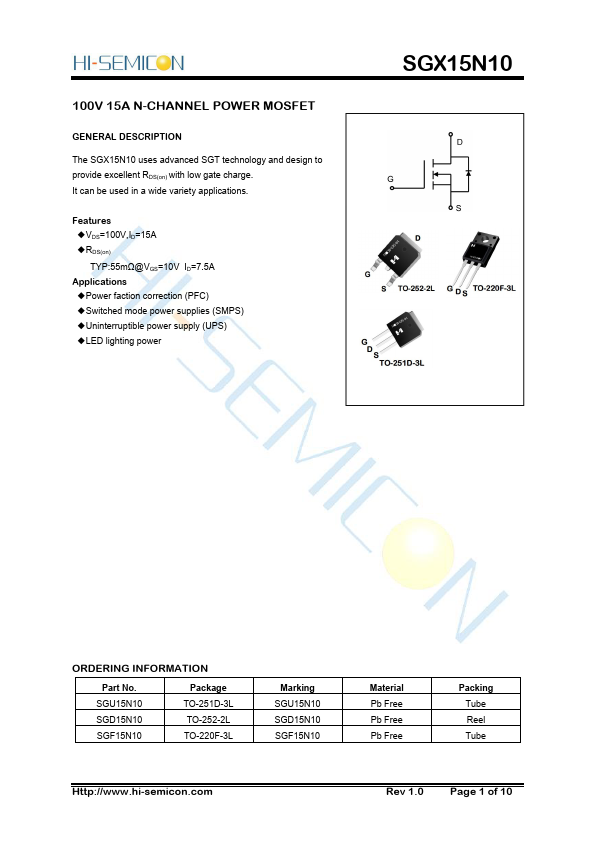

100V 15A N-CHANNEL POWER MOSFET GENERAL DESCRIPTION The SGX15N10 uses advanced SGT technology and design to provide excellent RDS(on) with low gate charge. It can be used in a wide variety applications. Features ◆VDS=100V,ID=15A ◆RDS(on) TYP:55mΩ@VGS=10V ID=7.5A Applications ◆Power faction correction (PFC) ◆Switched mode power supplies (SMPS) ◆Uninterruptible power supply (UPS) ◆LED lighting power SGX15N10 ORDERING INFORMATION Part No. SGU15N10 SGD15N10 SGF15N10 Package TO-251D-3L TO-252-2L TO-220F-3L Marking SGU15N10 SGD15N10 SGF15N10 Http://www.hi-semicon.com Material Pb Free Pb Free Pb Free Packing Tube Reel Tube Rev 1.

Published: Aug 26, 2025 |
