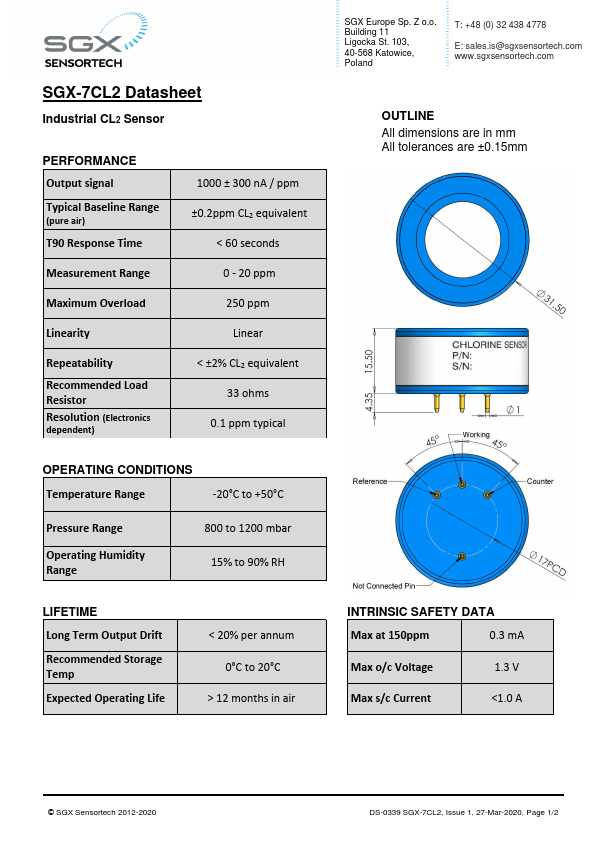

SGX-7CL2 Datasheet
Industrial CL2 Sensor
PERFORMANCE Output signal Typical Baseline Range
(pure air)
T90 Response Time
Measurement Range
Maximum Overload
Linearity
Repeatability Recommended Load Resistor Resolution (Electronics
dependent)
1000 ± 300 nA / ppm ±0.2ppm CL2 equivalent
< 60 seconds 0 - 20 ppm 250 ppm Linear
< ±2% CL2 equivalent 33 ohms
0.1 ppm typical
OPERATING CONDITIONS Temperature Range
-20°C to +50°C
Pressure Range
Operating Humidity Range
800 to 1200 mbar 15% to 90% RH
LIFETIME Long Term Output Drift
Recommended Storage Temp
Expected Operating Life
< 20% per annum 0°C to 20°C
> 12 months in air
SGX Europe Sp. Z o.o. Building 11 Ligocka St. 103, 40-568 Katowice, Poland
T: +48 (0) 32 438 4778
E: sales.is@sgxsensortech.com www.sgxsensortech.
SGX-7CL2 Datasheet
