SGX-7NH3-1000 - Industrial Ammonia Sensor

📥 Download Datasheet

Datasheet preview – SGX-7NH3-1000

Datasheet Details

Part number SGX-7NH3-1000
Manufacturer SGX
File Size 328.11 KB
Description Industrial Ammonia Sensor
Datasheet download datasheet SGX-7NH3-1000 Datasheet
Additional preview pages of the SGX-7NH3-1000 datasheet.

📁 Similar Datasheet

  • SGX105R5T - 100V 120A N-CHANNEL POWER MOSFET (HiSemicon)
  • SGX15N10 - 100V 15A N-CHANNEL POWER MOSFET (HiSemicon)
Other Datasheets by SGX

Full PDF Text Transcription

Click to expand full text

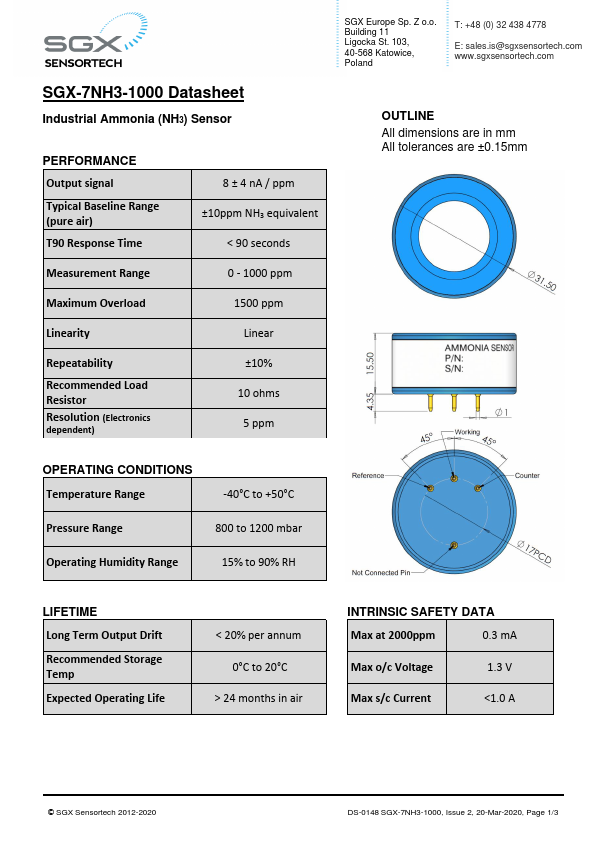

SGX-7NH3-1000 Datasheet Industrial Ammonia (NH3) Sensor PERFORMANCE Output signal Typical Baseline Range (pure air) T90 Response Time Measurement Range Maximum Overload Linearity Repeatability Recommended Load Resistor Resolution (Electronics dependent) 8 ± 4 nA / ppm ±10ppm NH3 equivalent < 90 seconds 0 - 1000 ppm 1500 ppm Linear ±10% 10 ohms 5 ppm SGX Europe Sp. Z o.o. Building 11 Ligocka St. 103, 40-568 Katowice, Poland T: +48 (0) 32 438 4778 E: sales.is@sgxsensortech.com www.sgxsensortech.com OUTLINE All dimensions are in mm All tolerances are ±0.
