2SD2031 Datasheet - Hitachi Semiconductor

2SD2031 - Silicon NPN Transistor

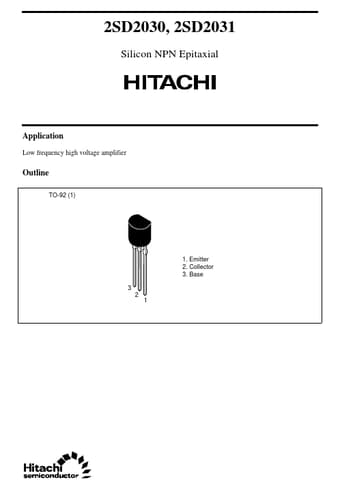

2SD2030, 2SD2031 Silicon NPN Epitaxial Application Low frequency high voltage amplifier Outline TO-92 (1) 1.

Emitter 2.

Collector 3.

Base 3 2 1 2SD2030, 2SD2031 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg 2SD2030 160 160 5 100 400 150 55 to +150 2SD2031 200 200 5 100 400 150 55

2SD2031_HitachiSemiconductor.pdf

Preview of 2SD2031 PDF
2SD2031 Datasheet Preview Page 2 2SD2031 Datasheet Preview Page 3

Datasheet Details

Part number:

2SD2031

Manufacturer:

Hitachi Semiconductor

File Size:

30.85 KB

Description:

Silicon npn transistor.
