2SD203 - NPN Transistor

2SD203 Description

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SD203 .
Excellent Safe Operating Area. Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 100V(Min. Low Collector Saturation Voltage. High S.

2SD203 Applications

* Designed for power amplifier and switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER MAX UNIT VCBO Collector-Base Voltage 130 V VCEO Collector-Emitter Voltage 100 V VEBO Emitter-Base Voltage 6 V IC Collector Current-Continuous 6 A ICP Collector Curren

📥 Download Datasheet

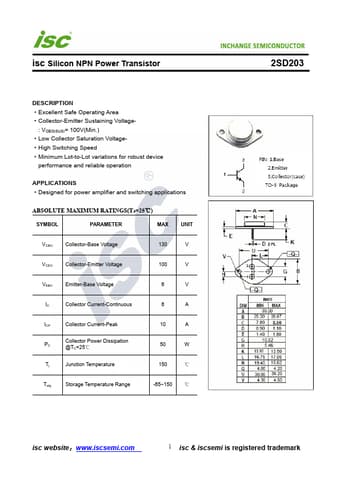

Preview of 2SD203 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SD203
Manufacturer
INCHANGE
File Size
189.23 KB
Datasheet
2SD203-INCHANGE.pdf
Description
NPN Transistor
