2SD2337 Silicon NPN Transistor

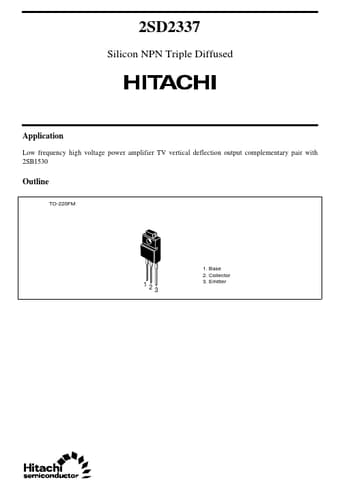

2SD2337 Silicon NPN Triple Diffused Application Low frequency high voltage power amplifier TV vertical deflection output complementary pair with 2SB1530 Outline TO-220FM 12 3 1. Base 2. Collector 3. Emitter 2SD2337 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Symbol VCBO VCEO VEBO IC I C(peak) PC PC Junction temperature Storage temperature No.
