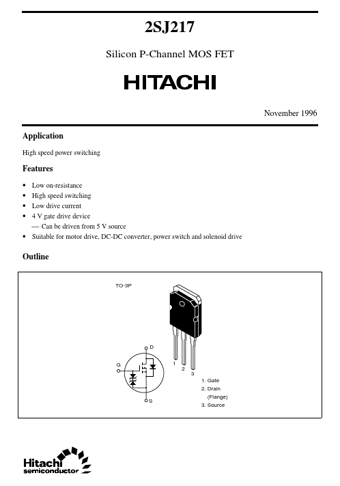

Part number:
2SJ217
Manufacturer:
Hitachi Semiconductor
File Size:
49.22 KB
Description:
P-channel mosfet.
* Low on-resistance High speed switching Low drive current 4 V gate drive device Can be driven from 5 V source
* Suitable for motor drive, DC-DC converter, power switch and solenoid drive Outline TO-3P D G 1 2 3 1. Gate 2. Drain (Flange) 3. Source
2SJ217
Hitachi Semiconductor
49.22 KB
P-channel mosfet.
