2SK3161L - Silicon N-Channel MOSFET

2SK3161L Description

2SK3161(L), 2SK3161(S) Silicon N Channel MOS FET High Speed Power Switching ADE-208-734A (Z) 2nd.Edition February 1999 .

2SK3161L Features

* Low on-resistance R DS = 90 mΩ typ.
* High speed switching
* 4 V gate drive device can be driven from 5 V source Outline LDPAK 4 4 D 1 1 2 3 G 2 3 1. Gate 2. Drain 3. Source 4. Drain S 2SK3161(L),2SK3161(S) Absolute Maximum Ratings (Ta = 25°C) Item Drain to sourc

📥 Download Datasheet

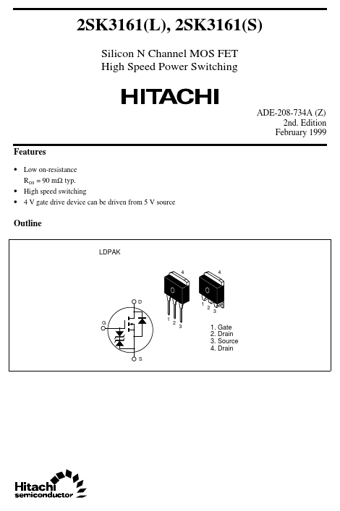

Preview of 2SK3161L PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK3161L
Manufacturer
Hitachi Semiconductor
File Size
55.18 KB
Datasheet
2SK3161L_HitachiSemiconductor.pdf
Description
Silicon N-Channel MOSFET
