2SK3211 - N-Channel MOSFET

Product Overview

Hitachi Semiconductor

Part number	2SK3211
Manufacturer	Hitachi Semiconductor
File Size	64.17 KB
Description	N-Channel MOSFET
Datasheet	2SK3211 Datasheet

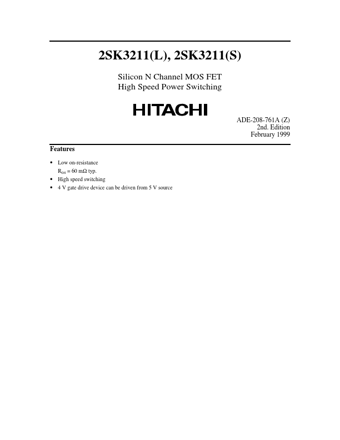

Additional preview pages of the 2SK3211 datasheet.

Low on-resistance RDS = 60 mΩ typ. High speed switching 4 V gate drive device can be driven from 5 V source 2SK3211 Outline LDPAK 4 4 D 1 1 2 3 G 2 3 1. Gate 2. Drain 3. Source 4. Drain S Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body-drain diode reverse drain current Avalanche current Avalanche energy Channel dissipation Channel temperature Storage temperature Note: Symbol VD.
