2SK320 Datasheet, Transistor, Inchange Semiconductor

PDF File Details

Part number:

2SK320

Manufacturer:

Inchange Semiconductor

File Size:

59.83kb

Download:

📄 Datasheet

Description:

N-channel mosfet transistor.

  • Drain Current   –ID=5A@ TC=25℃
  • Drain Source Voltage- : VDSS= 450V(Min)
  • Fast Switching Speed

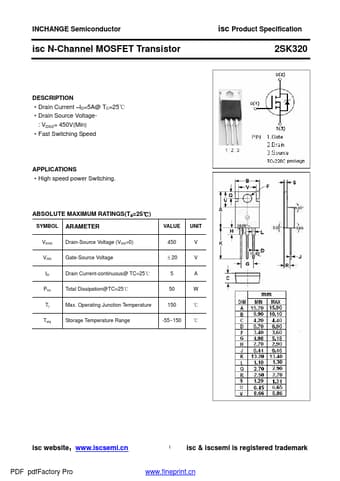

  • Datasheet Preview: 2SK320 📥 Download PDF (59.83kb)
    Page 2 of 2SK320

    2SK320 Application

    • Applications
    • High speed power Switching. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS VGS ID Ptot Tj Tstg Drain-Sou

    TAGS

    2SK320
    N-Channel
    MOSFET
    Transistor
    Inchange Semiconductor
