2SK3205 Datasheet - Toshiba Semiconductor

2SK3205 N-Channel MOSFET

2SK3205 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (L π MOSV) 2 2SK3205 Switching Regulator Applications DC DC Converter, and Motor Drive Applications l 4 V gate drive l Low drain source ON resistance l High forward transfer admittance l Low leakage current l Enhancement mode : RDS (ON) = 0.36 Ω (typ.) : |Yfs| = 4.5 S (typ.) Unit: mm : IDSS = 100 µA (max) (VDS = 150 V) : Vth = 0.8~2.0 V (VDS = 10 V, ID = 1 mA) Maximum Ratings (Ta = 25°C.

2SK3205_ToshibaSemiconductor.pdf

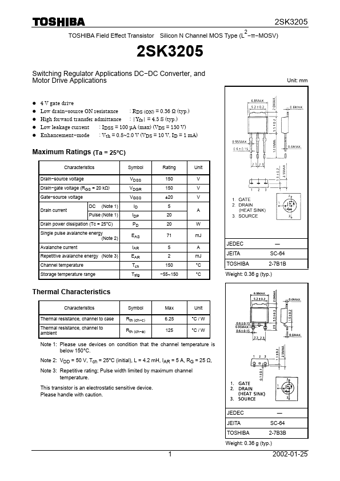

Preview of 2SK3205 PDF
2SK3205 Datasheet Preview Page 2 2SK3205 Datasheet Preview Page 3

Datasheet Details

Part number:

2SK3205

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

128.71 KB

Description:

N-channel mosfet.
