2SK3236 Datasheet - Toshiba Semiconductor

2SK3236 N-Channel MOSFET

www.DataSheet4U.com 2SK3236 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (U-MOSII) 2SK3236 Switching Regulator Applications, DC-DC Converter and Motor Drive Applications 4 V gate drive Low drain-source ON resistance: RDS (ON) = 13.5 mΩ (typ.) High forward transfer admittance: |Yfs| = 42 S (typ.) Low leakage current: IDSS = 100 µA (max) (VDS = 60 V) Enhancement-model: Vth = 1.3~2.5 V (VDS = 10 V, ID = 1 mA) Unit: mm Maximum Ratings (Ta = 25°C) Charac.

2SK3236_ToshibaSemiconductor.pdf

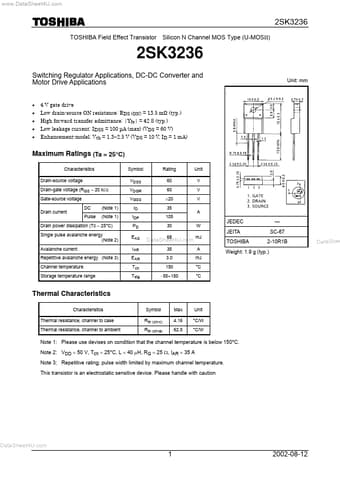

Preview of 2SK3236 PDF
2SK3236 Datasheet Preview Page 2 2SK3236 Datasheet Preview Page 3

Datasheet Details

Part number:

2SK3236

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

291.89 KB

Description:

N-channel mosfet.
