2SK3230 - N-CHANNEL SILICON JUNCTION FIELD EFFECT TRANSISTOR

2SK3230 Description

www.DataSheet4U.com DATA SHEET JUNCTION FIELD EFFECT TRANSISTOR 2SK3230 N-CHANNEL SILICON JUNCTION FIELD EFFECT TRANSISTOR FOR IMPEDANCE CONVERTER .
The 2SK3230 is suitable for converter of ECM. Compact package.

2SK3230 Features

* Compact package
* High forward transfer admittance 1000 µS TYP. (IDSS = 100 µA) 1600 µS TYP. (IDSS = 200 µA)
* Includes diode and high resistance at G - S 1.0 1.6 ± 0.1 0.8 ± 0.1 G D S ORDERING INFORMATION 2SK3230 SC-89 (TUSM) 0.5 ± 0.05 1.6 ± 0.1 PART NUMBER PACKAGE

2SK3230 Applications

* of a semiconductor product depend on its quality grade, as indicated below. Customers must check the quality grade of each semiconductor product before using it in a particular application. "Standard": Computers, office equipment, communications equipment, test and measurement equipment, audio and v

📥 Download Datasheet

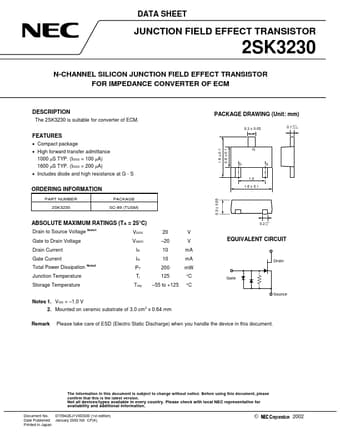

Preview of 2SK3230 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK3230
Manufacturer
NEC
File Size
76.60 KB
Datasheet
2SK3230_NEC.pdf
Description
N-CHANNEL SILICON JUNCTION FIELD EFFECT TRANSISTOR
