2SK3224 - N-Channel MOSFET

2SK3224 Description

DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK3224 SWITCHING N-CHANNEL POWER MOS FET INDUSTRIAL USE ORDERING INFORMATION PART NUMBER 2SK3224 2SK3224-Z P.
This product is N-Channel MOS Field Effect Transistor designed for high current switching applications. Low On-State Resistance RD.

2SK3224 Features

* Low On-State Resistance RDS(on)1 = 40 mΩ MAX. (VGS = 10 V, ID = 10 A) RDS(on)2 = 60 mΩ MAX. (VGS = 4.0 V, ID = 10 A)
* Low Ciss : Ciss = 790 pF TYP.
* Built-in Gate Protection Diode
* TO-251/TO-252 package ABSOLUTE MAXIMUM RATINGS (TA = 25 °C) Drain to Source Volta

📥 Download Datasheet

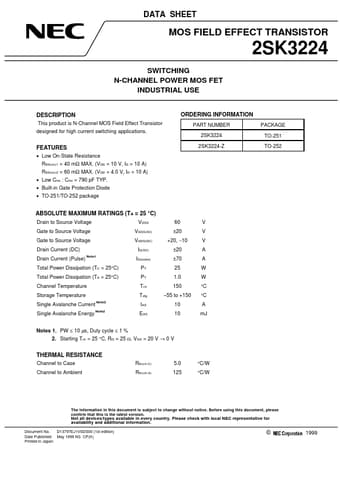

Preview of 2SK3224 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK3224
Manufacturer
NEC
File Size
39.84 KB
Datasheet
2SK3224_NEC.pdf
Description
N-Channel MOSFET
