2SK3229 - N-Channel MOSFET

Product Overview

Hitachi Semiconductor

Part number	2SK3229
Manufacturer	Hitachi Semiconductor
File Size	26.45 KB
Description	N-Channel MOSFET
Datasheet	2SK3229 Datasheet

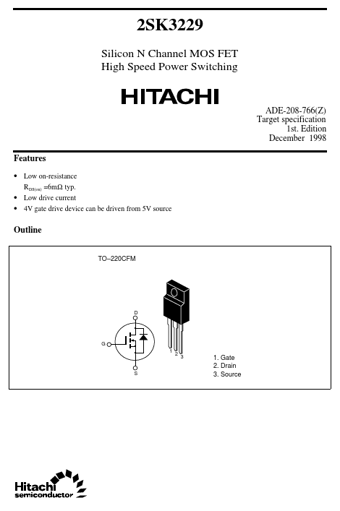

Additional preview pages of the 2SK3229 datasheet.

Low on-resistance R DS(on) =6mΩ typ.
Low drive current.
4V gate drive device can be driven from 5V source Outline TO.
220CFM D G 1 2 3 S 1. Gate 2. Drain 3. Source 2SK3229 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body-drain diode reverse drain current Avalanche current Avalanche energy Channel dissipation Channel temperature Storage temperature Note: Symbol VDSS VGSS ID I D.
