2SK3230C - MOSFET

Product Overview

NEC

2SK3230C MOSFET by NEC - Datasheet Preview — Datasheet preview – 2SK3230C

Datasheet Details

Part number	2SK3230C
Manufacturer	NEC
File Size	153.28 KB
Description	MOSFET
Datasheet	2SK3230C Datasheet

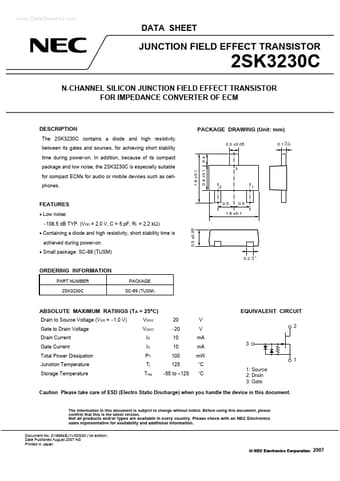

Additional preview pages of the 2SK3230C datasheet.

Product details

Description

The 2SK3230C contains a diode and high resistivity between its gates and sources, for achieving short stability PACKAGE DRAWING (Unit: mm) 0.3 ±0.05 0.4 0.1 0.05 +0.1 time during power-on.In addition, because of its compact 1.6 ±0.1 for compact ECMs for audio or mobile devices such as cellphones.0.8 ±0.1 package and low noise, the 2SK3230C is especially suitable 3 2 1

Features

Low noise:.
108.5 dB TYP. (VDD = 2.0 V, C = 5 pF, RL = 2.2 kΩ).
Containing a diode and high resistivity, short stability time is achieved during power-on.
Small package: SC-89 (TUSM) 0.5 ±0.05 0.5 0.5 1.6 ±0.1 0.2 +0.1.
