HD74AC126 Datasheet, output equivalent, Hitachi Semiconductor

HD74AC126 Features

• Output
• 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers
• Outputs Source/Sink 24 mA
• HD74ACT126 has TTL-Compatible Inputs Pin Arrangement E 1 D 2

PDF File Details

Part number:

HD74AC126

Manufacturer:

Hitachi Semiconductor

File Size:

47.32kb

Download:

📄 Datasheet

Description:

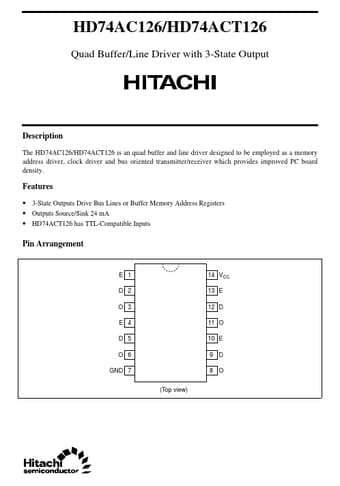

Quad buffer/line driver with 3-state output. The HD74AC126/HD74ACT126 is an quad buffer and line driver designed to be employed as a memory address driver, clock driver and bus o
