HD74ACT126 - Quad Buffer/Line Driver with 3-State Output

Datasheet Summary

Description

The HD74AC126/HD74ACT126 is an quad buffer and line driver designed to be employed as a memory address driver, clock driver and bus oriented transmitter/receiver which provides improved PC board density.

Features

  • 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers.
  • Outputs Source/Sink 24 mA.
  • HD74ACT126 has TTL-Compatible Inputs Pin Arrangement E 1 D 2 O 3 E 4 D 5 O 6 GND 7 (Top view) 14 VCC 13 E 12 D 11 O 10 E 9 D 8 O HD74AC126/HD74ACT126 Logic Symbol D O E Pin Names D E O Data Inputs 3-State Output Enable Inputs (Active High) Outputs Truth Table Inputs E H H L H L X Z : : : : High Voltage Level Low Voltage Level Immaterial High Impedance D L H X Output.

📥 Download Datasheet

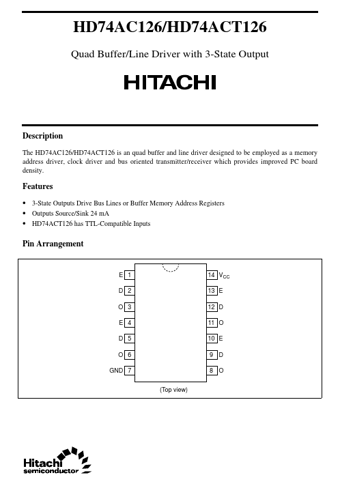

Datasheet preview – HD74ACT126

Datasheet Details

Part number HD74ACT126
Manufacturer Hitachi Semiconductor
File Size 47.32 KB
Description Quad Buffer/Line Driver with 3-State Output
Datasheet download datasheet HD74ACT126 Datasheet
Additional preview pages of the HD74ACT126 datasheet.

📁 Similar Datasheet

Other Datasheets by Hitachi Semiconductor
  • HD74ACT125 - Quad Buffer/Line Driver with 3-State Output
  • HD74ACT107 - Dual JK Flip-Flop (with Separate Clear and Clock)
  • HD74ACT112 - Dual JK Negative Edge-Triggered Flip-Flop
  • HD74ACT138 - 1-of-8 Decoder/Demultiplexer
  • HD74ACT139 - Dual 1-of-4 Decoder/Demultiplexer
  • HD74ACT161 - Synchronous Presettable Binary Counter
  • HD74ACT163 - Synchronous Presettable Binary Counter
  • HD74ACT164 - Serial-In/ Parallel-Out Shift Register

Full PDF Text Transcription

Click to expand full text
HD74AC126/HD74ACT126 Quad Buffer/Line Driver with 3-State Output Description The HD74AC126/HD74ACT126 is an quad buffer and line driver designed to be employed as a memory address driver, clock driver and bus oriented transmitter/receiver which provides improved PC board density.
