HD74ACT161 - Synchronous Presettable Binary Counter

Datasheet Summary

Description

The HD74ACT161 and HD74ACT163 are high-speed synchronous modulo-16 binary counters.

They are synchronously presettable for application in programmable dividers and have two types of Count Enable inputs plus a Terminal Count output for versatility in forming synchronous multistage counters.

Features

  • Synchronous Counting and Loading High-Speed Synchronous Expansion Typical Count Rate of 125 MHz Outputs Source/Sink 24 mA HD74ACT161 and HD74ACT163 have TTL-Compatible Inputs HD74ACT161/HD74ACT163 Pin Arrangement.
  • R 1 CP 2 P0 3 P1 4 P2 5 P3 6 CEP 7 GND 8 (Top view) 16 VCC 15 TC 14 Q0 13 Q1 12 Q2 11 Q3 10 CET 9 PE Logic Symbol PE P0 P1 P2 P3 CEP CET CP.
  • R Q0 Q1 Q2 Q3.
  • MR for HD74ACT161.
  • SR for HD74AC163/HD74ACT.

📥 Download Datasheet

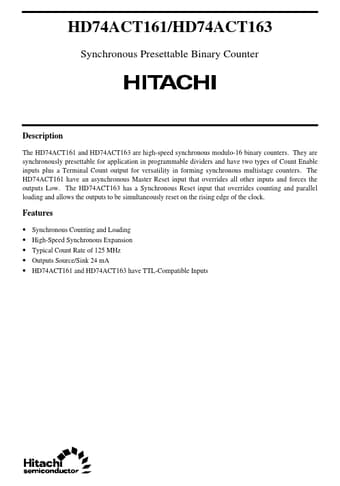

Datasheet preview – HD74ACT161

Datasheet Details

Part number HD74ACT161
Manufacturer Hitachi Semiconductor
File Size 70.41 KB
Description Synchronous Presettable Binary Counter
Datasheet download datasheet HD74ACT161 Datasheet
Additional preview pages of the HD74ACT161 datasheet.

📁 Similar Datasheet

Other Datasheets by Hitachi Semiconductor
  • HD74ACT163 - Synchronous Presettable Binary Counter
  • HD74ACT164 - Serial-In/ Parallel-Out Shift Register
  • HD74ACT165 - Parallel-Load 8-bit Shift Register
  • HD74ACT166 - 8-bit Shift Register
  • HD74ACT107 - Dual JK Flip-Flop (with Separate Clear and Clock)
  • HD74ACT112 - Dual JK Negative Edge-Triggered Flip-Flop
  • HD74ACT125 - Quad Buffer/Line Driver with 3-State Output
  • HD74ACT126 - Quad Buffer/Line Driver with 3-State Output

Full PDF Text Transcription

Click to expand full text
HD74ACT161/HD74ACT163 Synchronous Presettable Binary Counter Description The HD74ACT161 and HD74ACT163 are high-speed synchronous modulo-16 binary counters. They are synchronously presettable for application in programmable dividers and have two types of Count Enable inputs plus a Terminal Count output for versatility in forming synchronous multistage counters. The HD74ACT161 have an asynchronous Master Reset input that overrides all other inputs and forces the outputs Low. The HD74ACT163 has a Synchronous Reset input that overrides counting and parallel loading and allows the outputs to be simultaneously reset on the rising edge of the clock.
